This section includes printable scans from the 1960 Chrysler Parts catalogue, including exploded views and complete part number listings; page numbers referenced are those from the 1960 parts catalogue. Most part numbers should be identical for all cast-iron Torque-Flite transmissions used from 1956 through 1961.
Note: 2-speed Power-Flite transmissions, as used in 1954 through early 1956 Imperials, are not covered in this section.

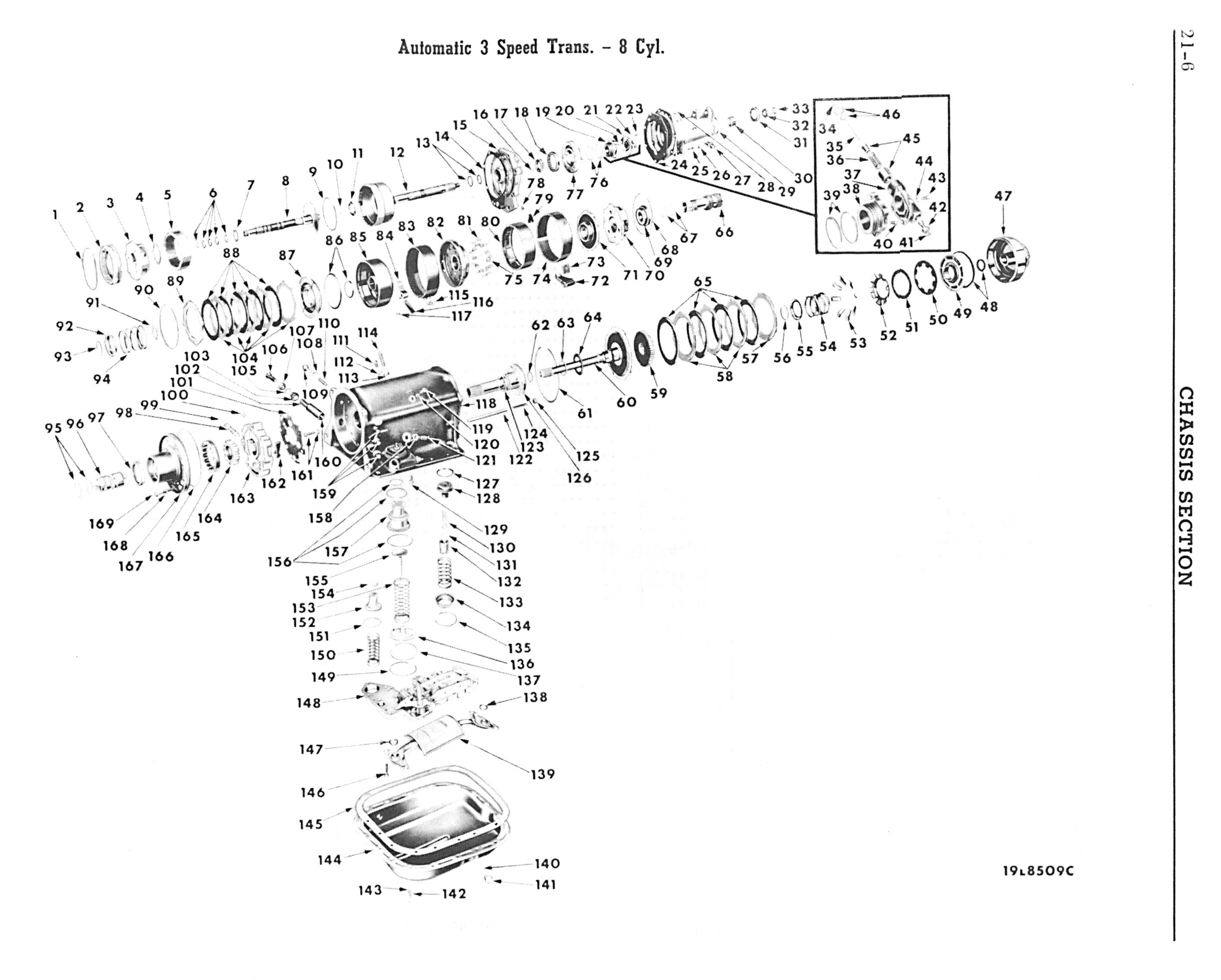

Page 21-06: Transmission Exploded View

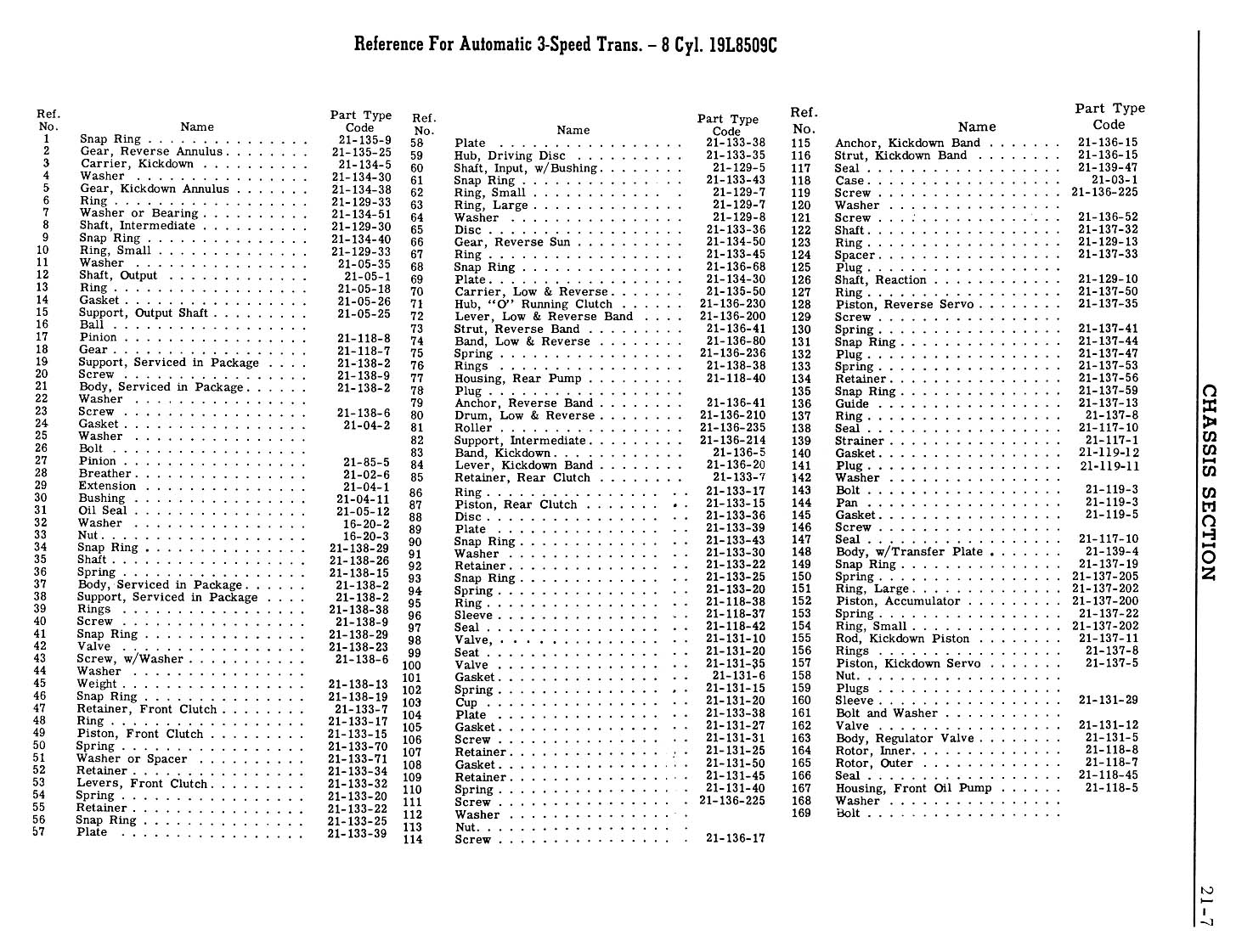

Page 21-07: Reference numbers for Exploded View (above)

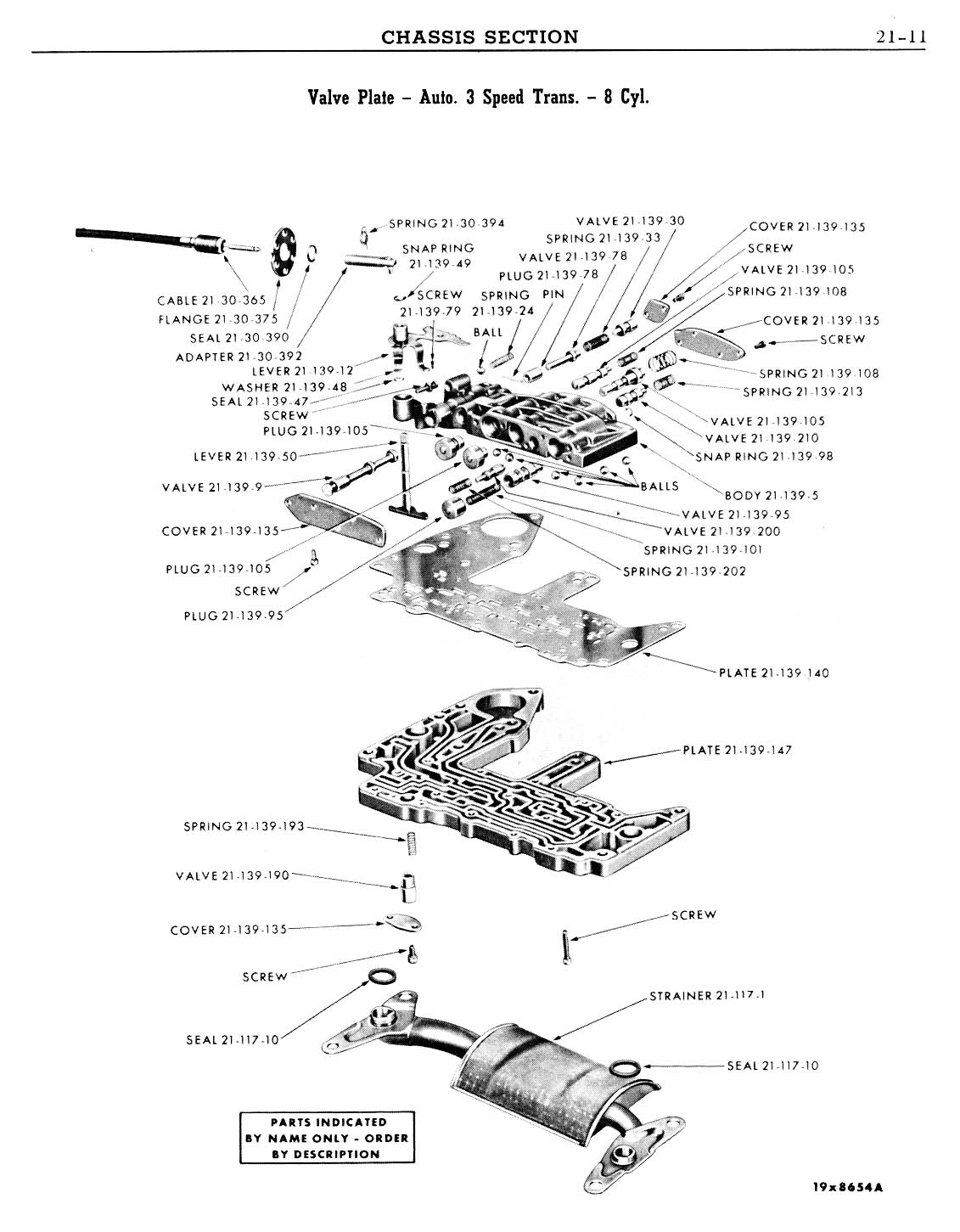

Page 21-11: Transmission Valve Plate Exploded View
Note: In the following pages, the Imperial code is "Y1" (last column) in the cross-reference tables.

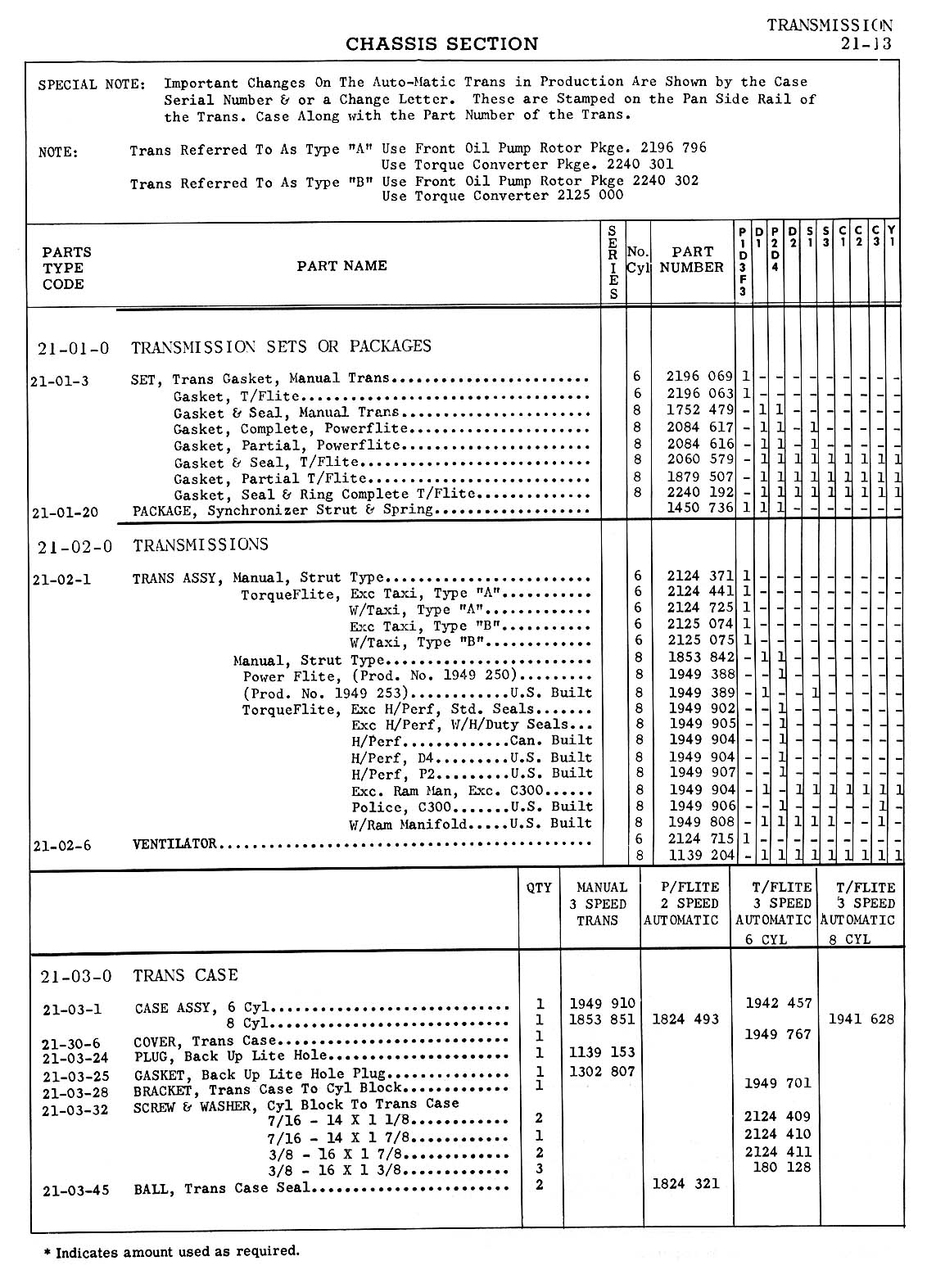

Page 21-13: Part Listings for Transmission Sets or Packages, Assemblies, Case

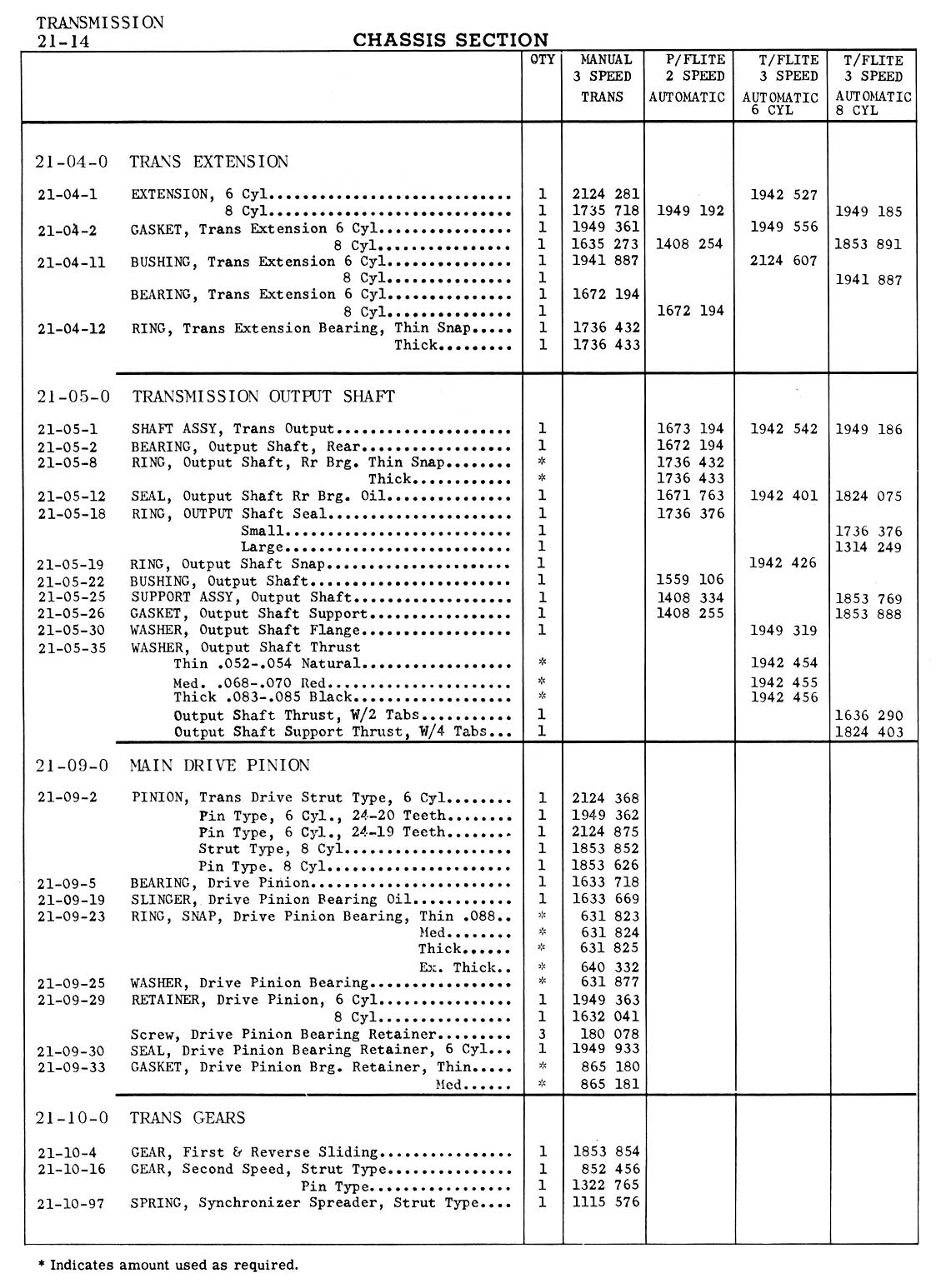

Page 21-14: Part Listings for Trans. Extension, Output Shaft

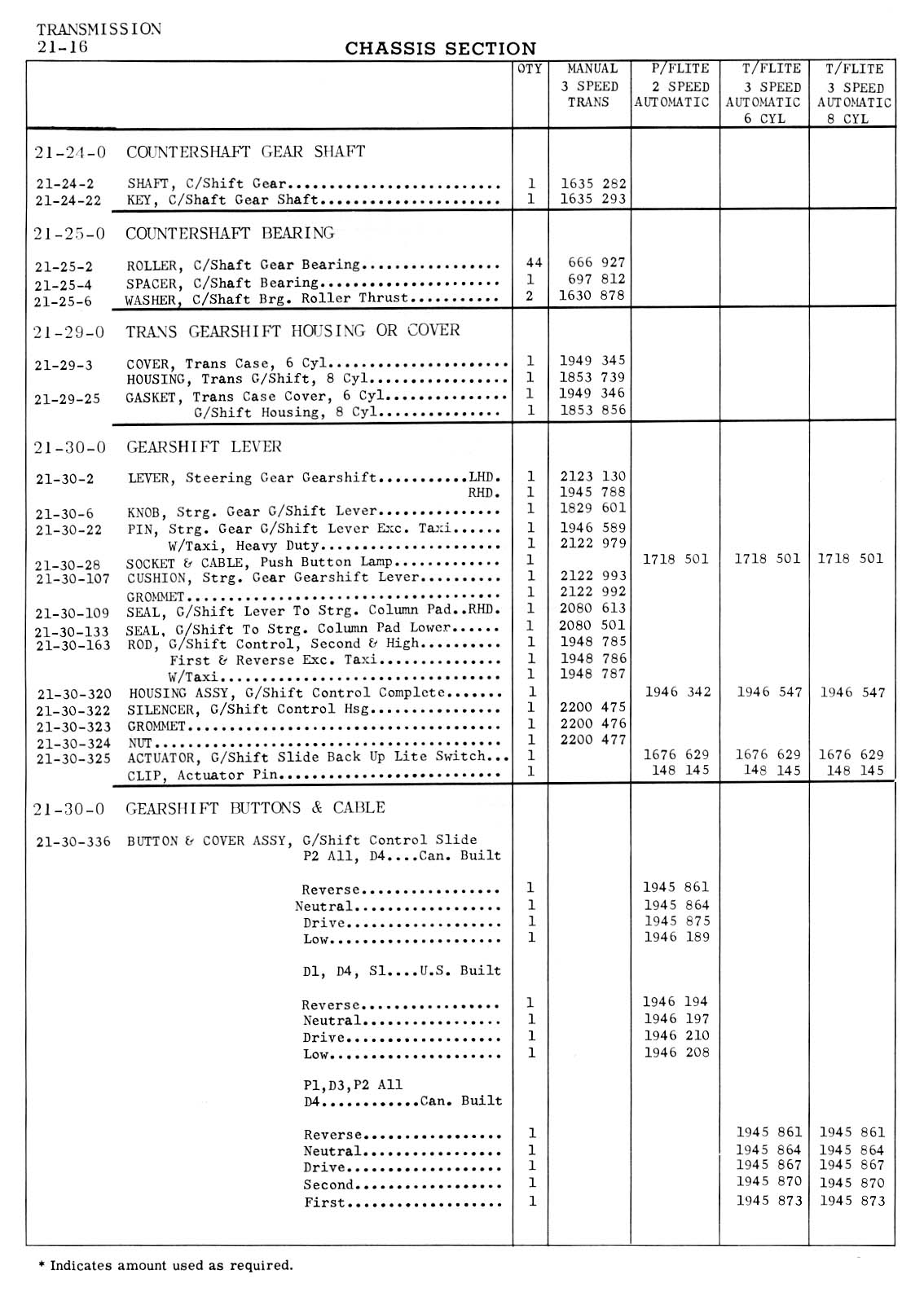

Page 21-16: Part Listings for Gearshift Lever, Gearshift Buttons and Cable

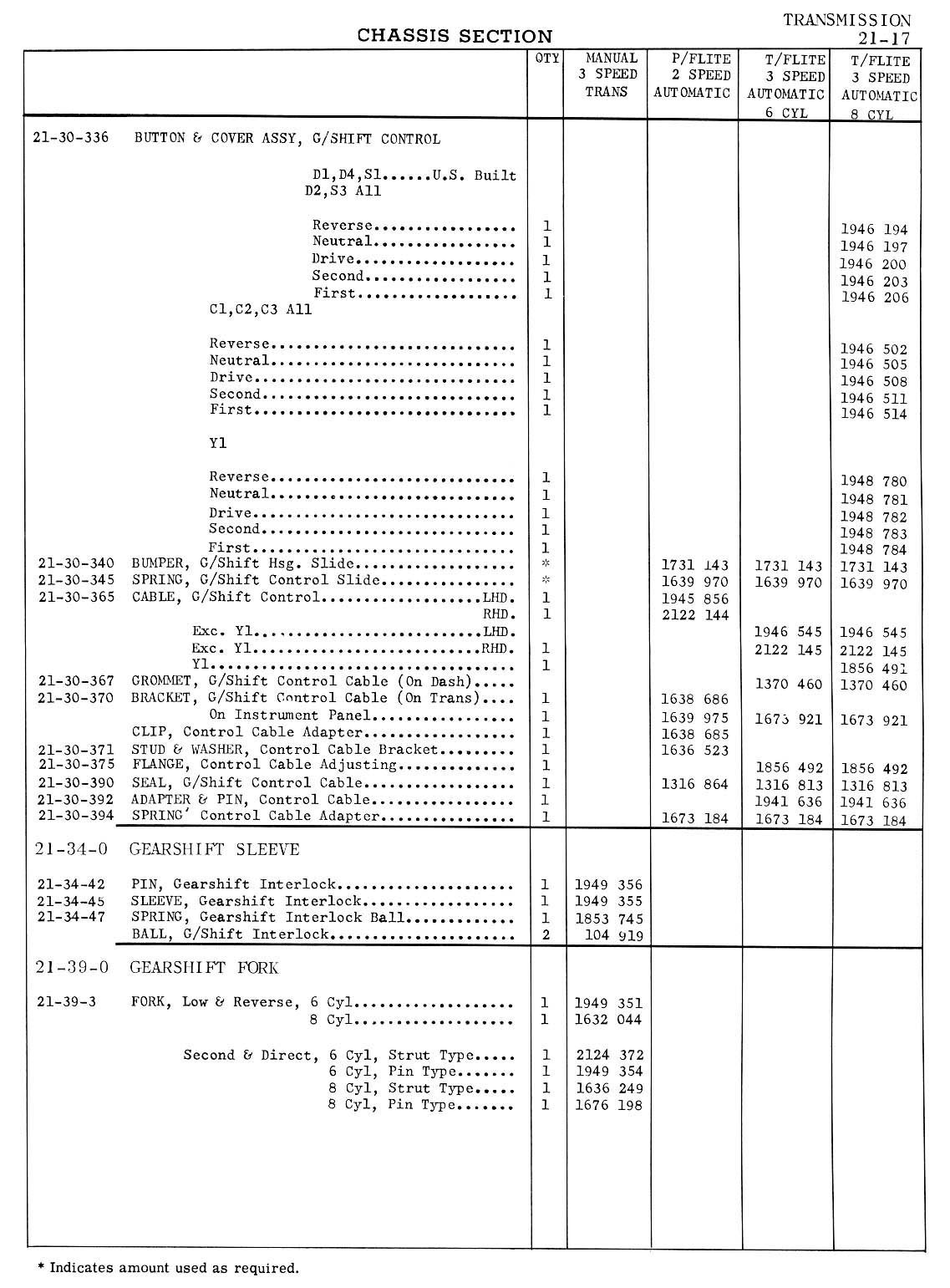

Page 21-17: Part Listings for Gearshift Buttons and Cable (cont'd)

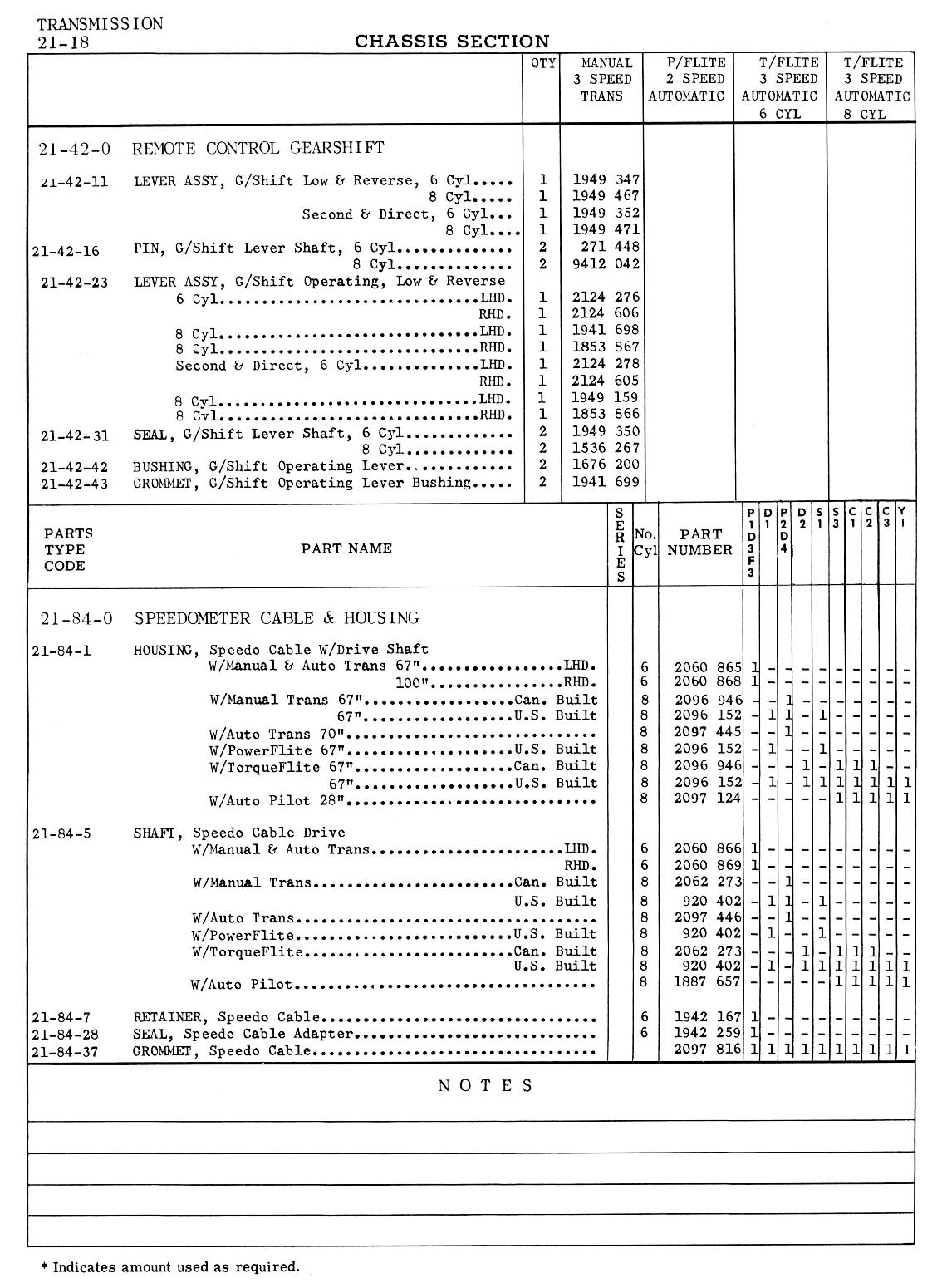

Page 21-18: Part Listings for Speedometer Cable and Housing

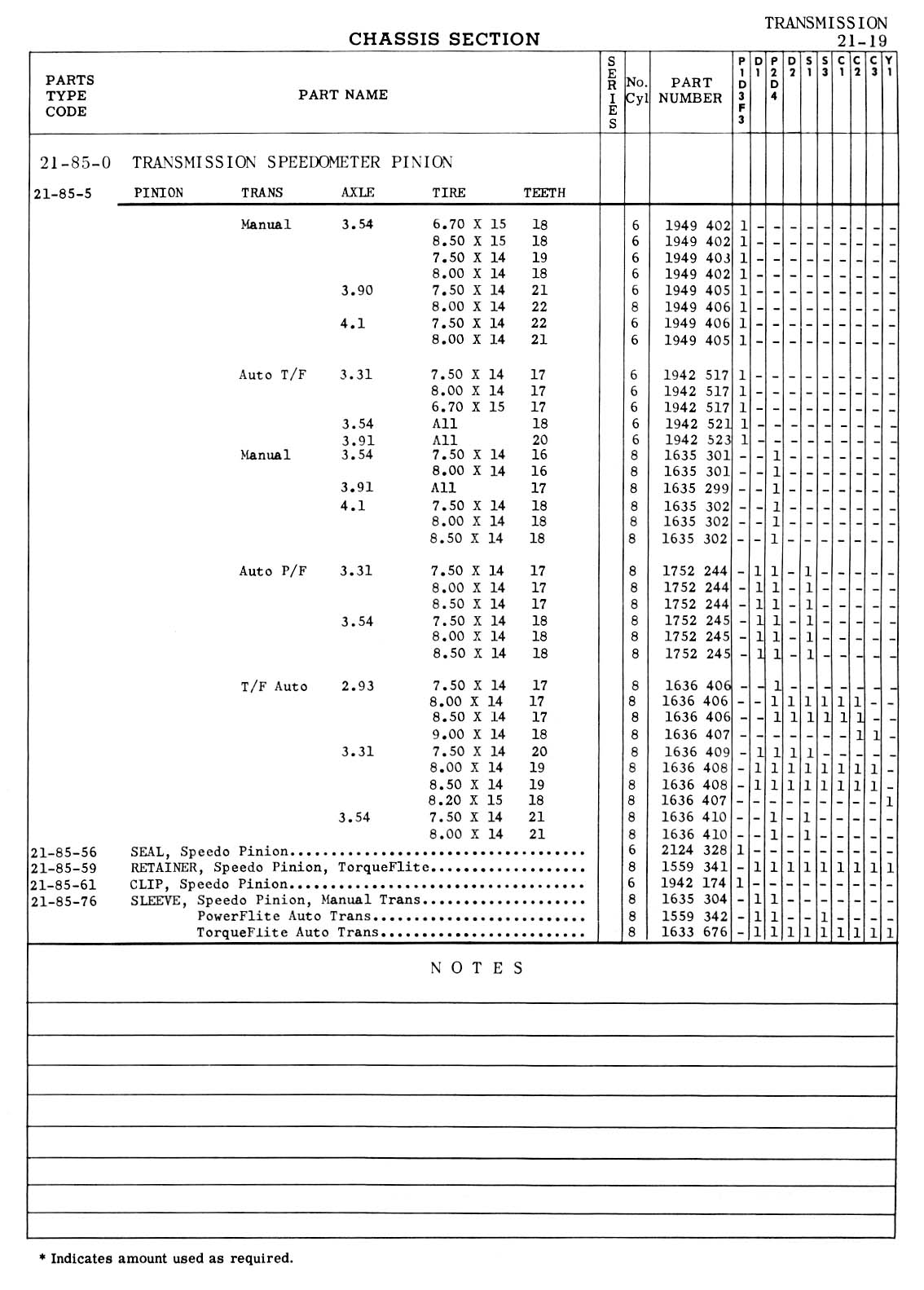

Page 21-19: Part Listings for Speedometer Pinion

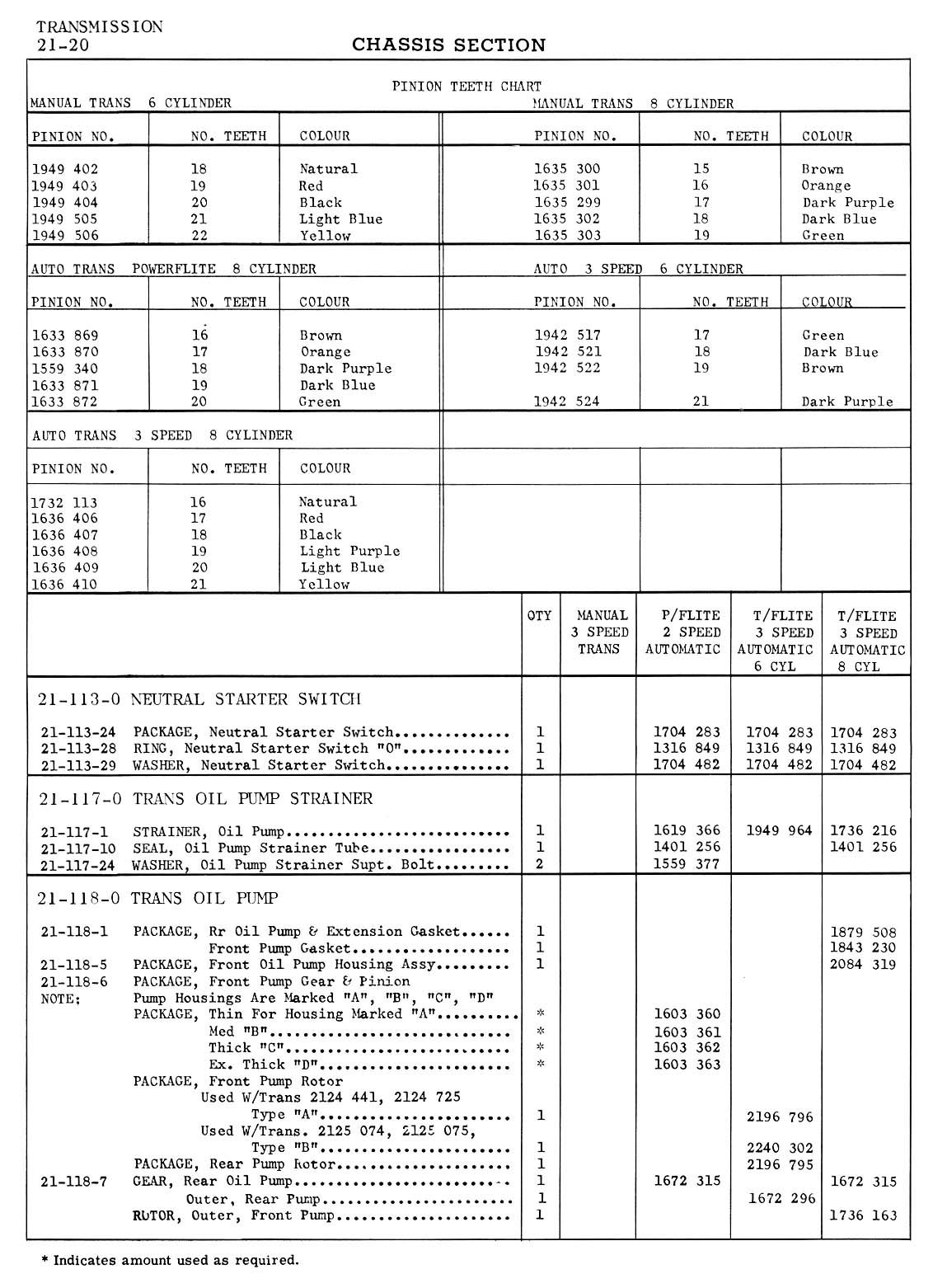

Page 21-20: Part Listings for Speedometer Pinion Teeth, Neutral Starter Switch, Trans. Oil Pump Strainer, Oil Pump

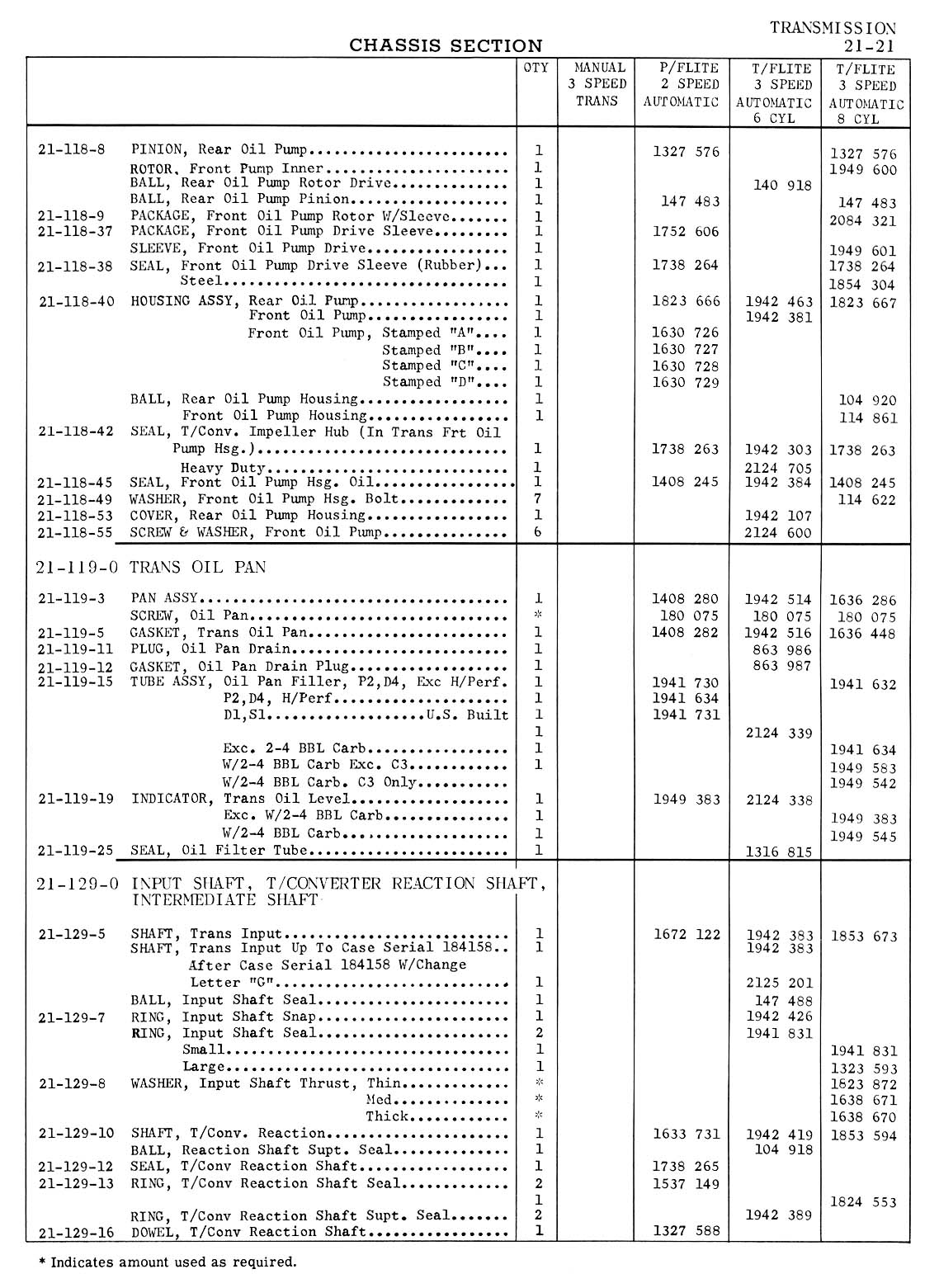

Page 21-21: Part Listings for Transmission Oil Pump (cont'd), Trans. Oil Pan, Input Shaft, Converter Reaction Shaft, Intermediate Shaft

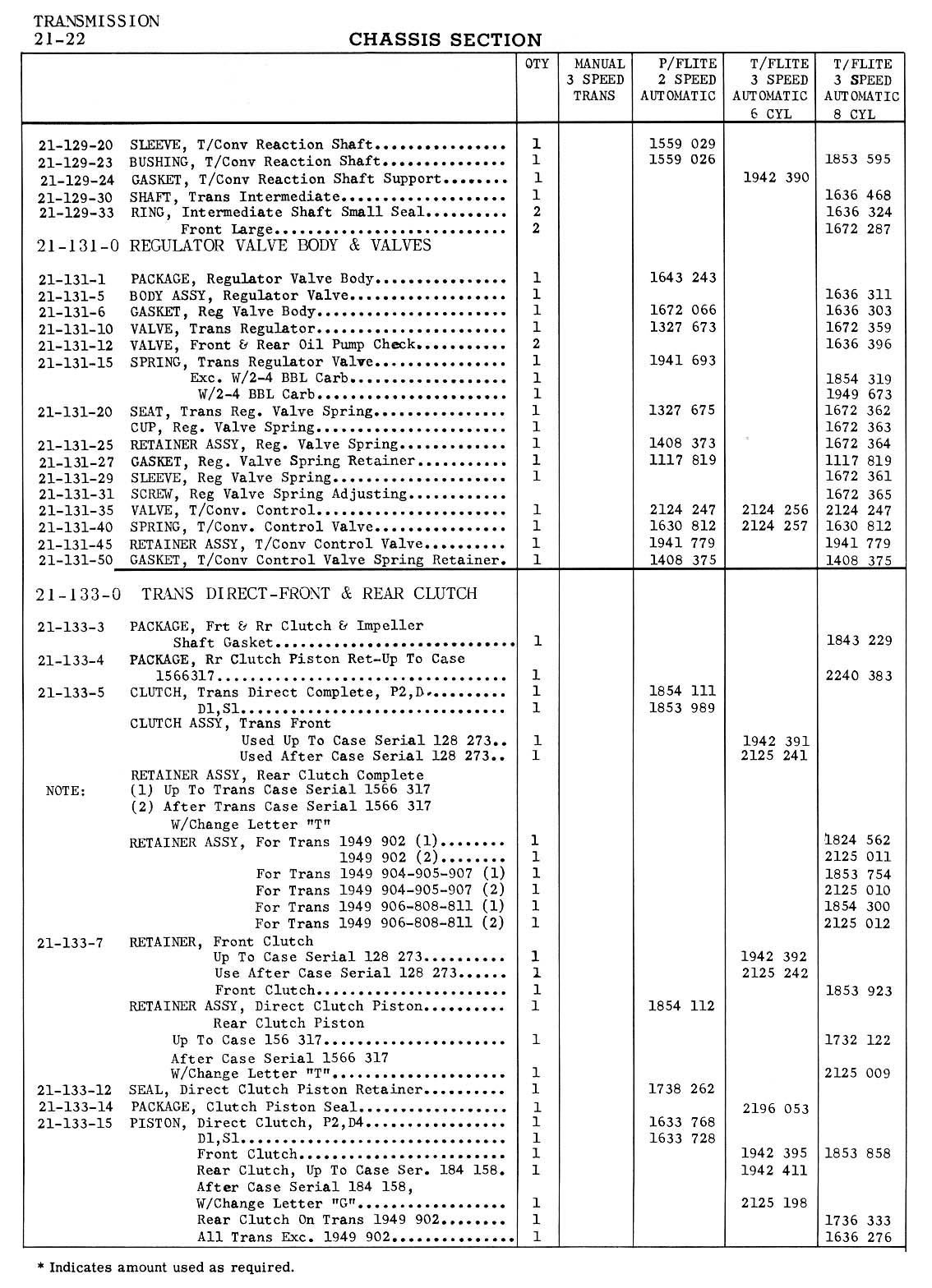

Page 21-22: Part Listings for Reaction/Intermediate Shaft (cont'd), Regulator Valve Body & Valves, Direct-Front & Rear Clutch

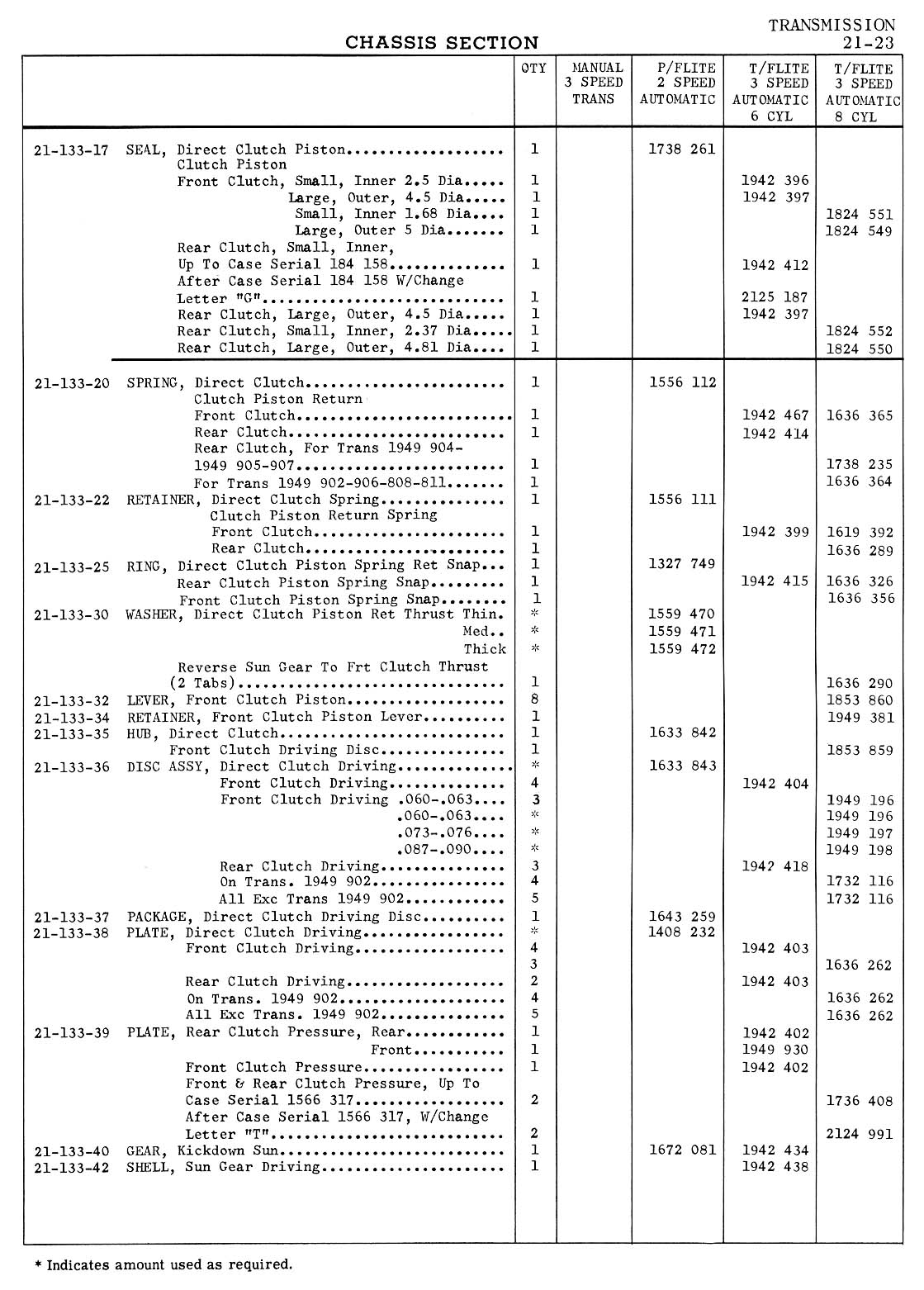

Page 21-23: Part Listings for Direct-Front & Rear Clutch (cont'd)

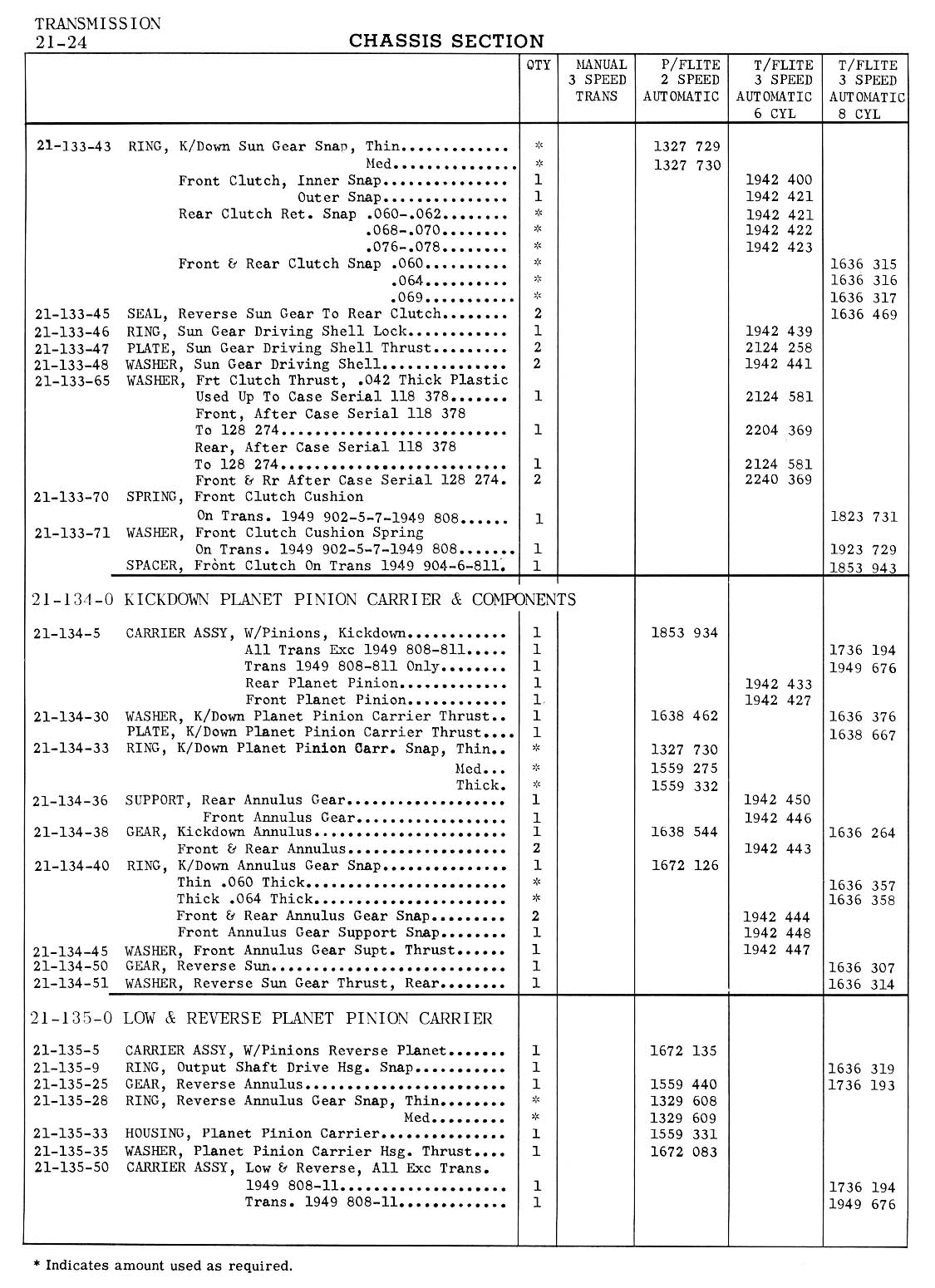

Page 21-24: Part Listings for Direct-Front & Rear Clutch (cont'd), Kickdown Planet Pinion Carrier, Low & Reverse Planet Pinion Carrier

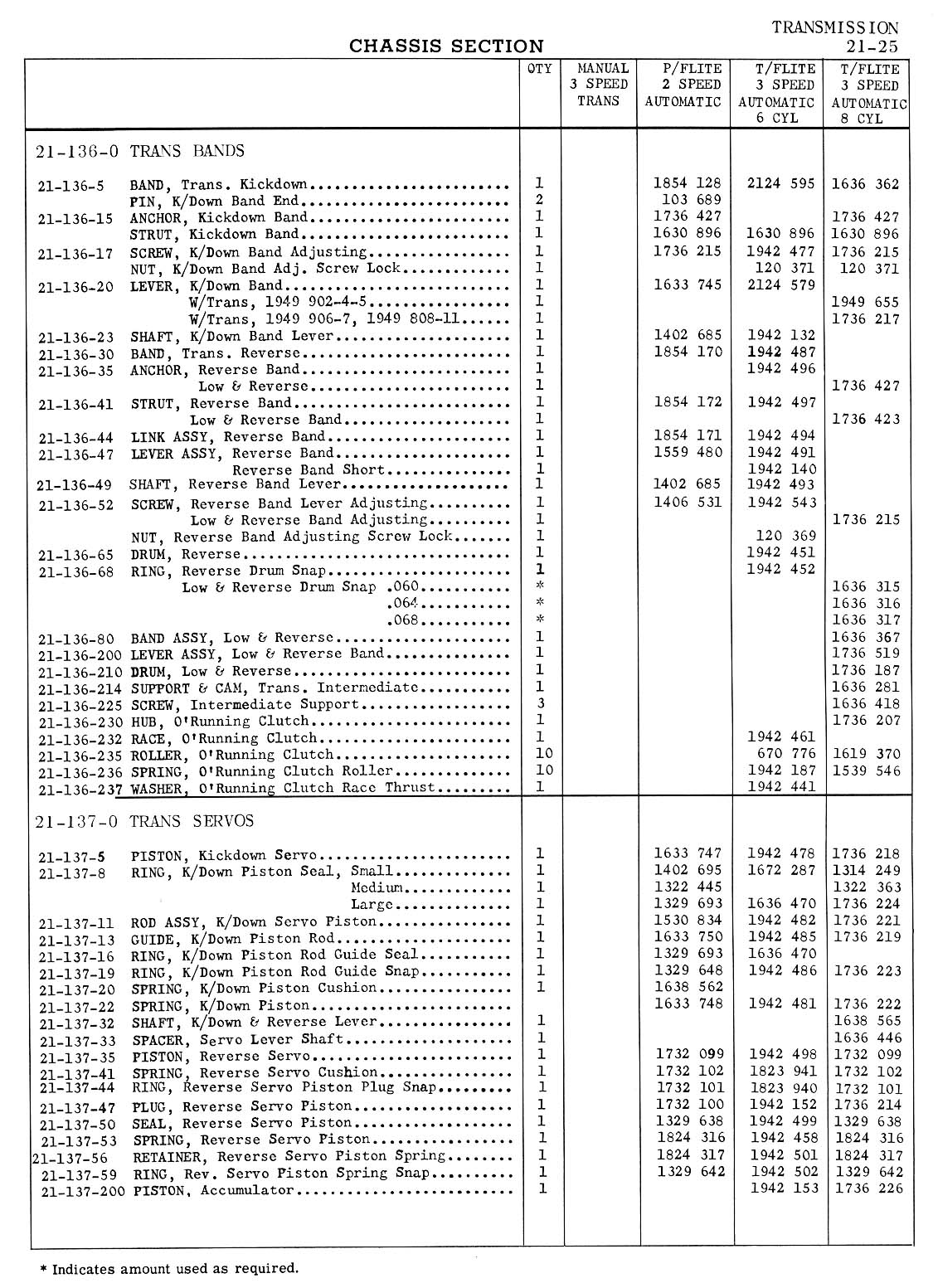

Page 21-25: Part Listings for Trans. Bands, Trans. Servos

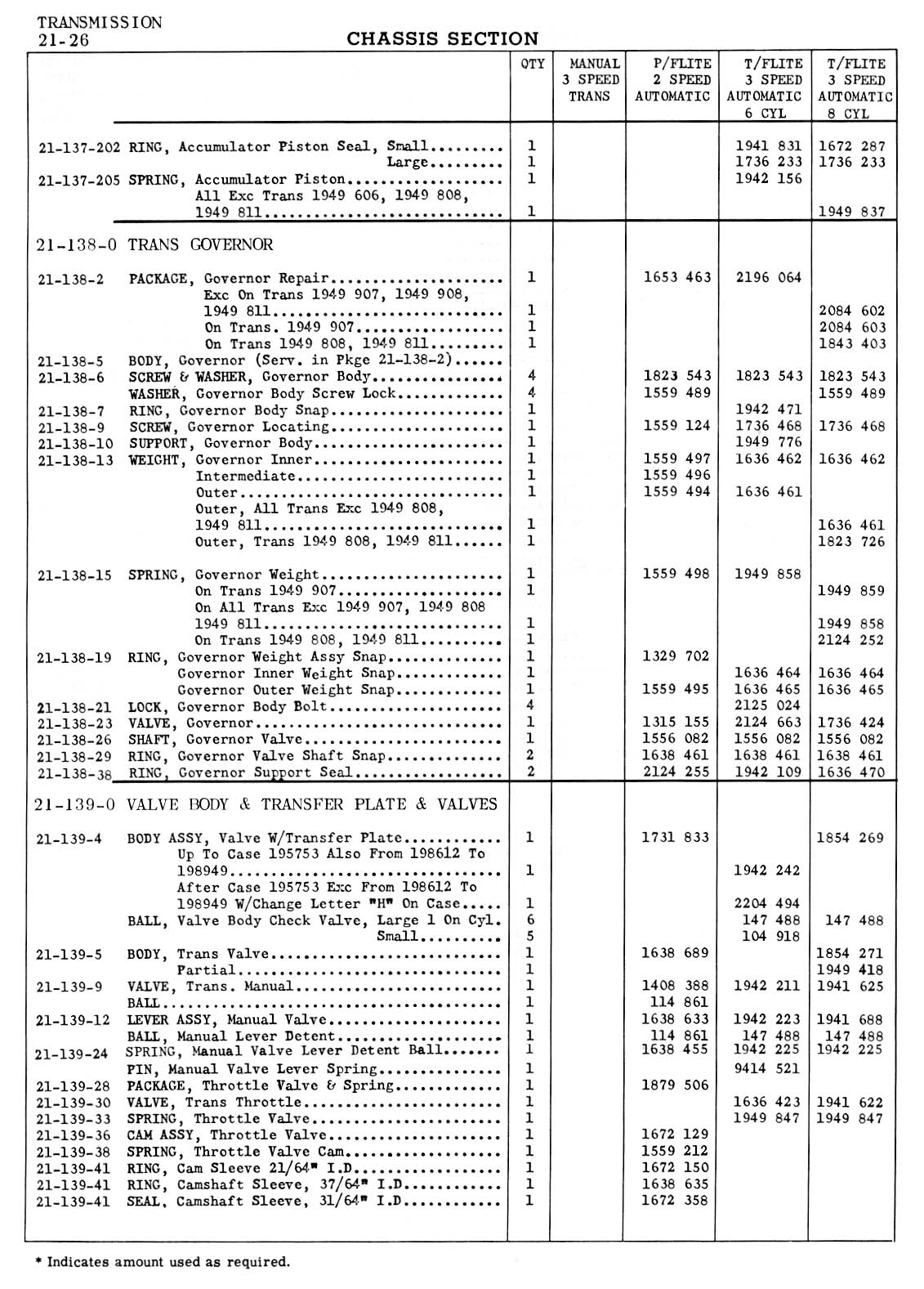

Page 21-26: Part Listings for Trans. Servos (cont'd), Trans. Governor, Valve Body & Transfer Plate & Valves

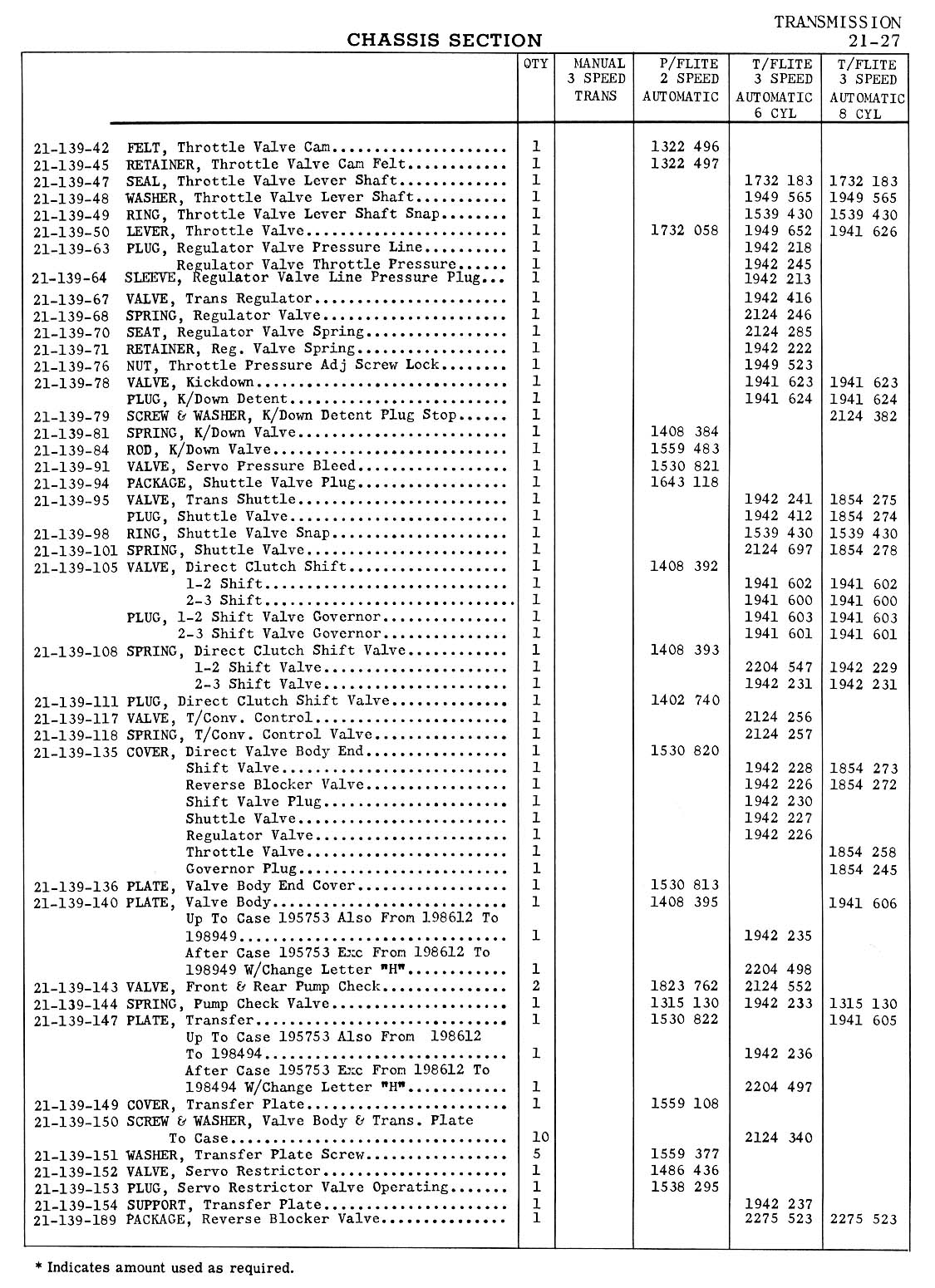

Page 21-27: Part Listings for Valve Body & Transfer Plate & Valves (cont'd)

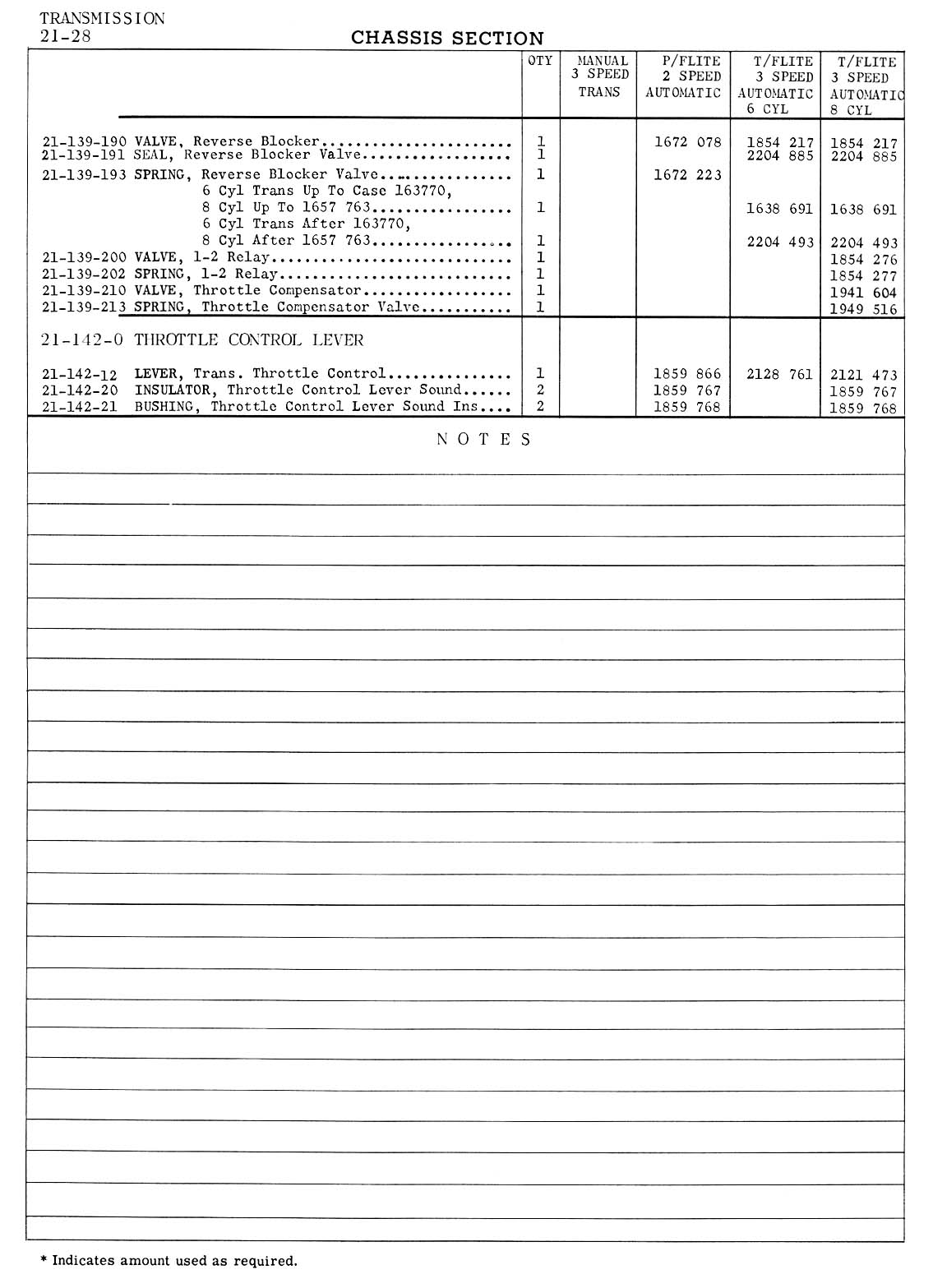

Page 21-28: Part Listings for Valve Body & Transfer Plate & Valves (cont'd), Throttle Control Lever
