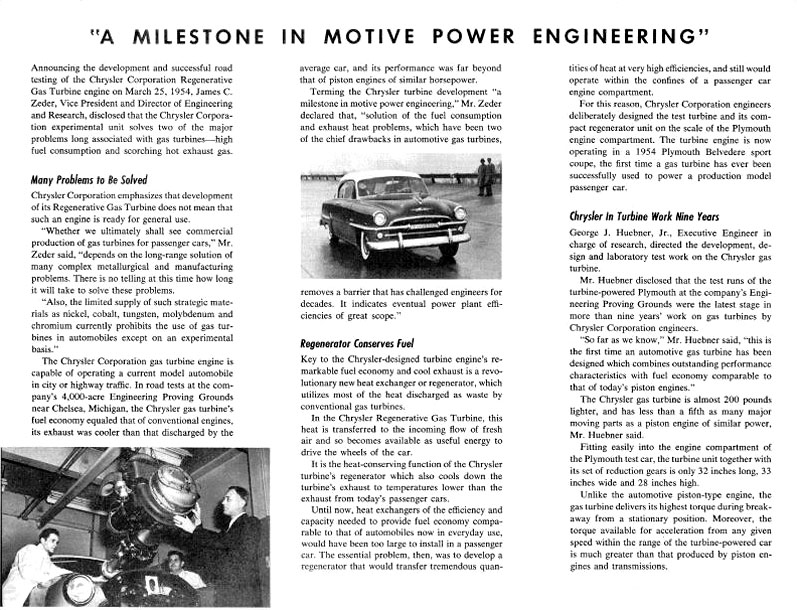

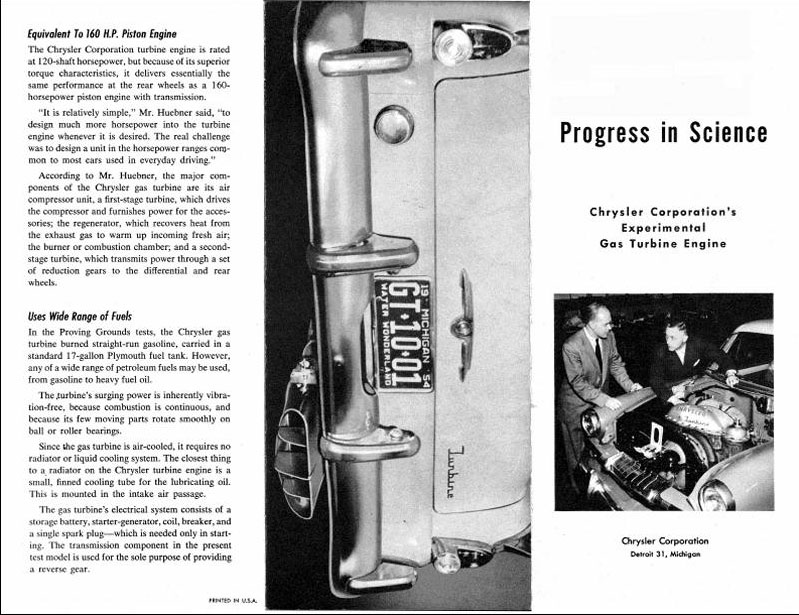

 Elwood Engel in front of his '63 Turbine |

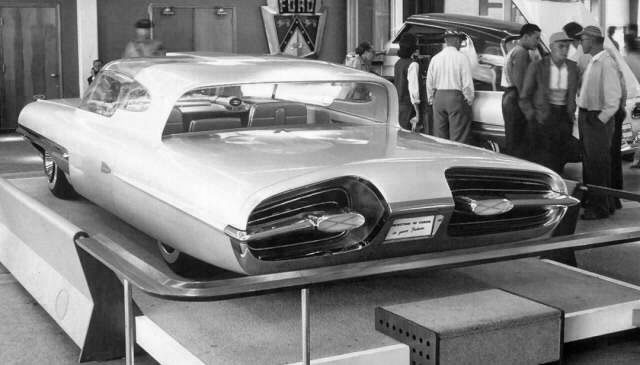

 The origin of the Turbine's delta-shaped rear-end is evidenced in the '58 laGalaxie Concept |

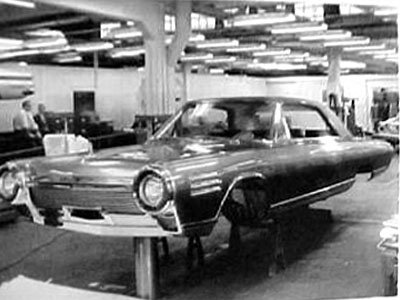

 A Turbine awaiting its engine and drivetrain at Chrysler's facility. |

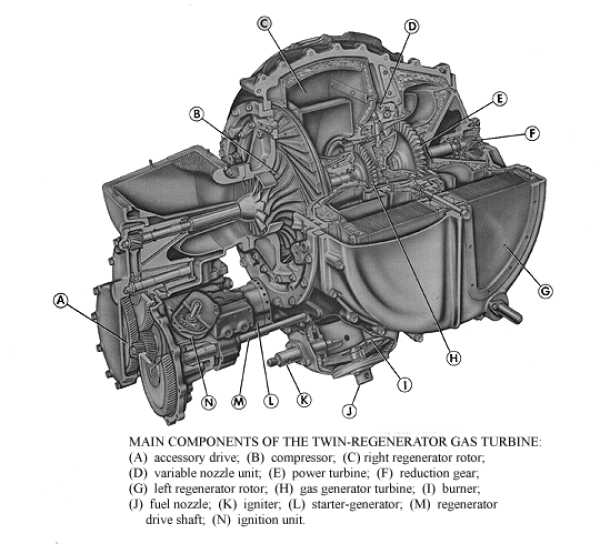

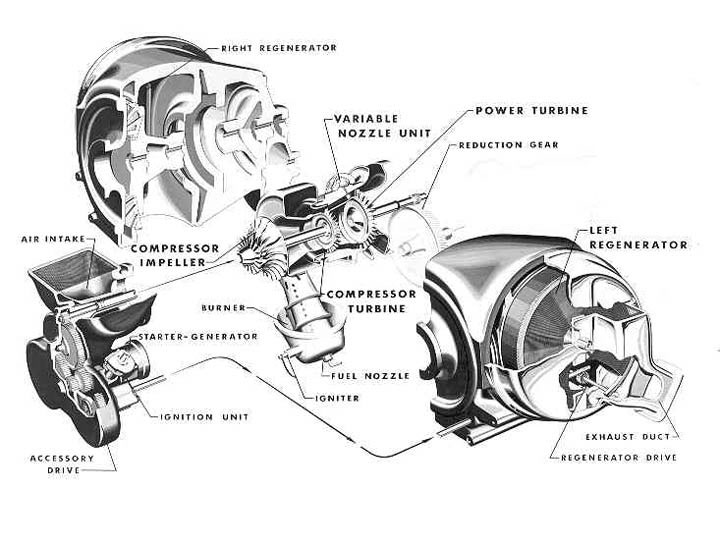

 Exploed view of the Twin-Regeneration Gas Turbine Engine showing main components. |

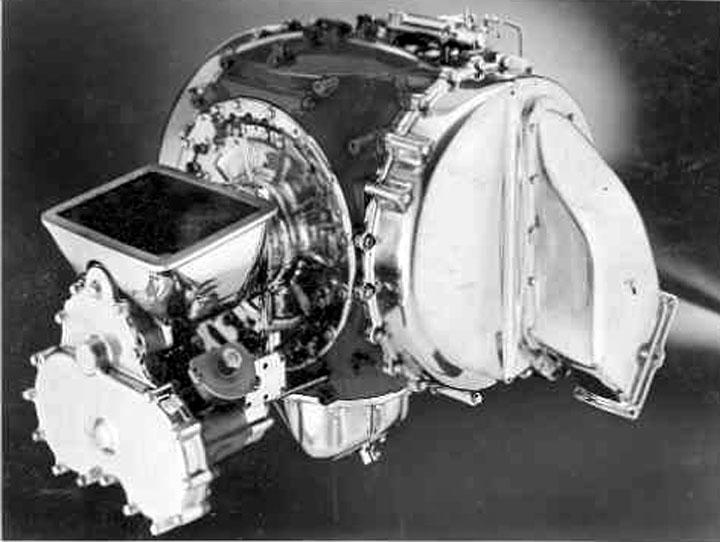

 Closeup of the Turbine showing the accessory drive, air intake elbow and ignition unit. The burner is in the center at the bottom. |

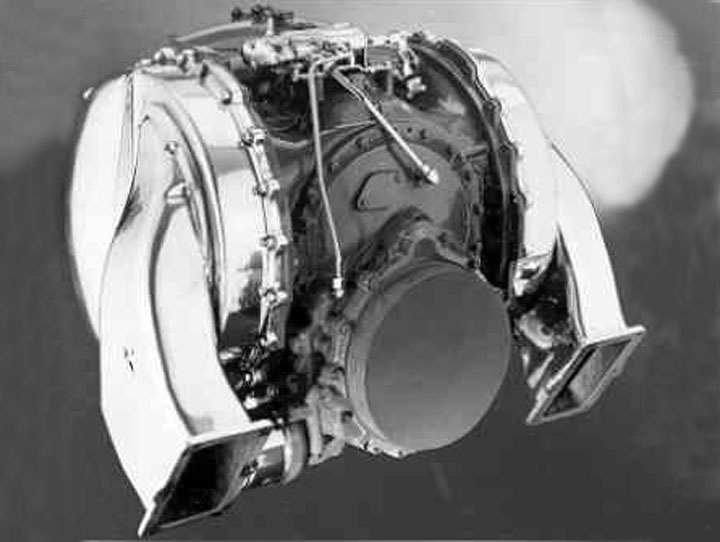

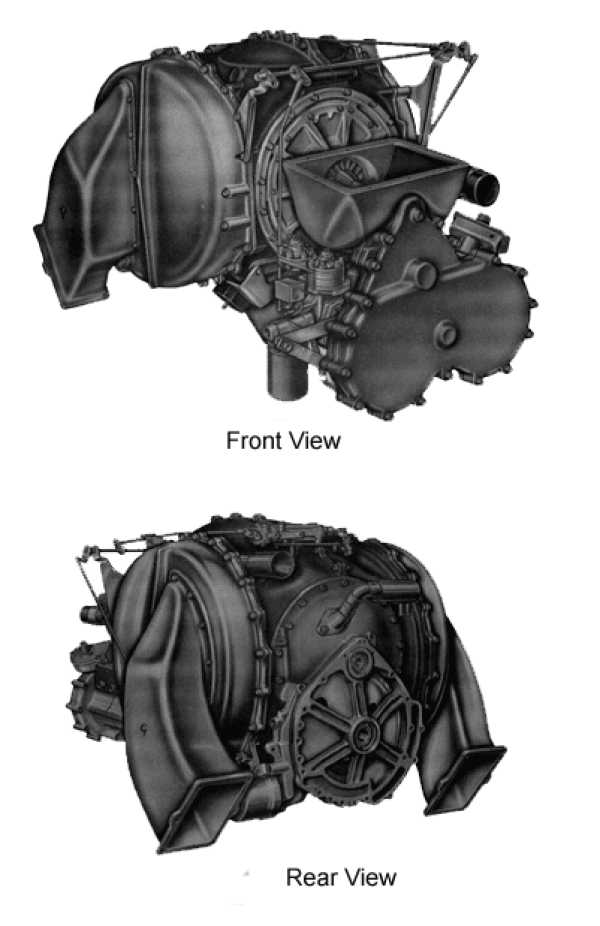

 Detailed view of the reduction gear and the exhaust ducts coming from the regenerators. |

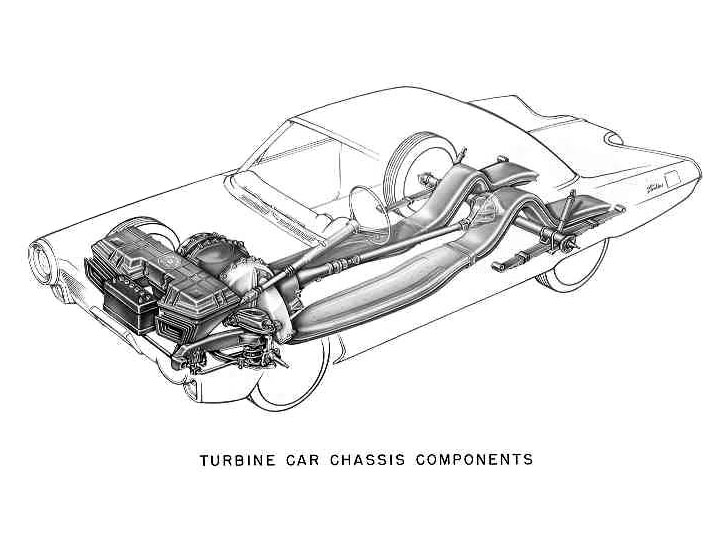

 A Phantom View of the Turbine car chassis components. Left side shows the battery, air intake, engine and front coil-over shock suspension system. Note the large exhaust ducting in the center. |

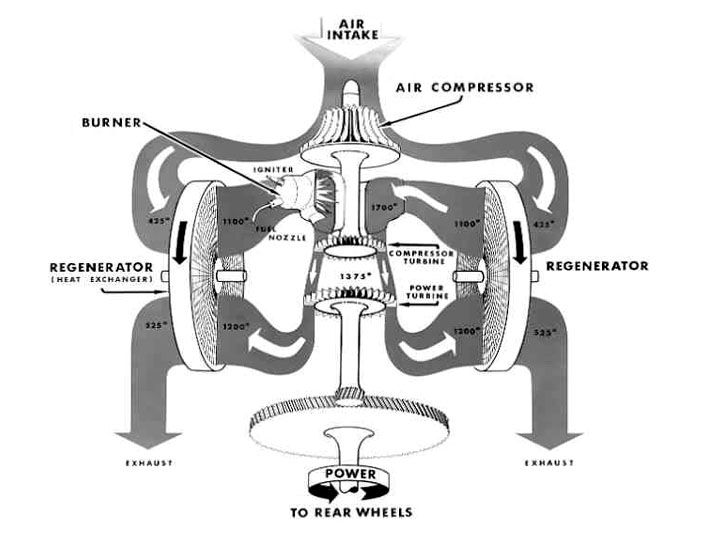

 Schematic diagram of the Turbine engine. |
 |
 |
 |
 |
 |
 |
