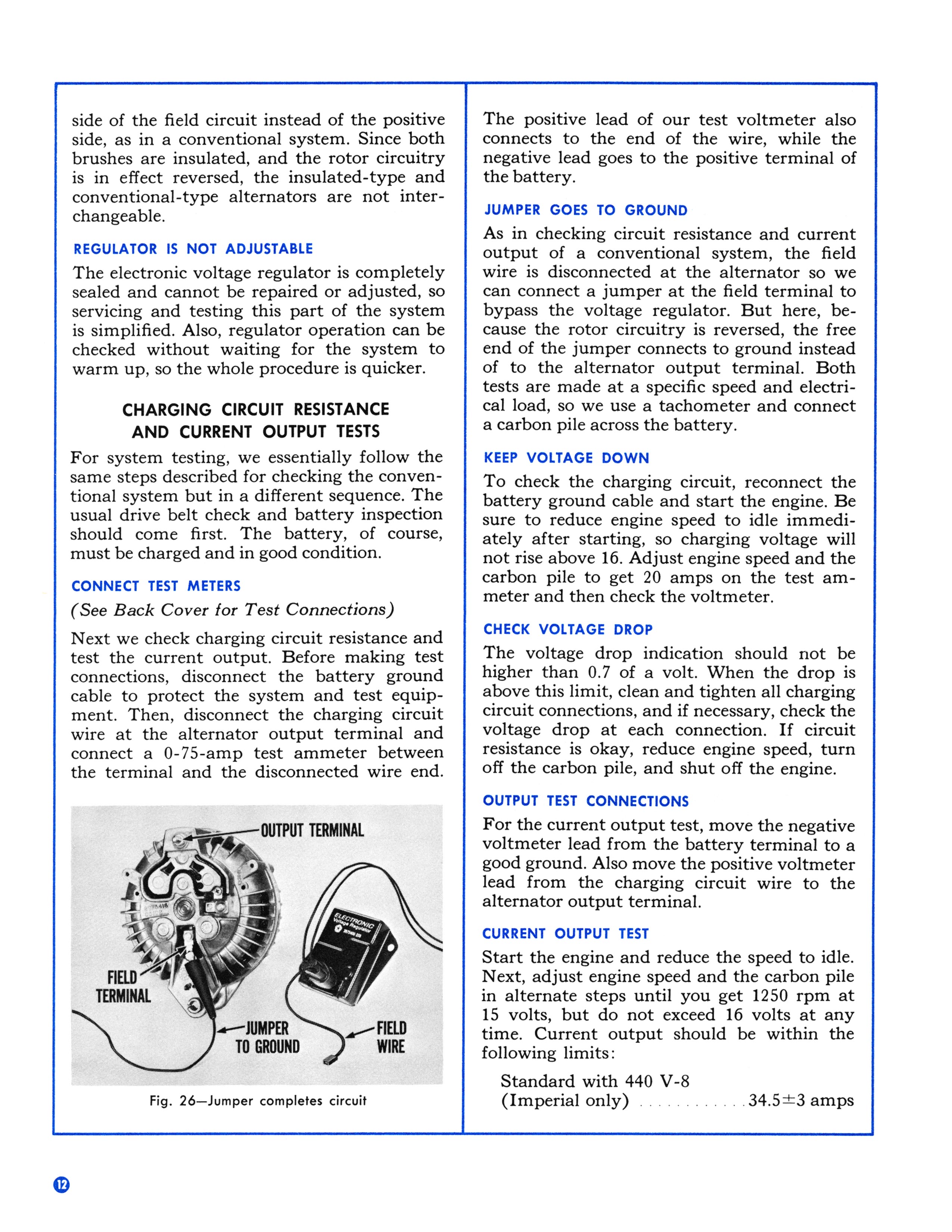

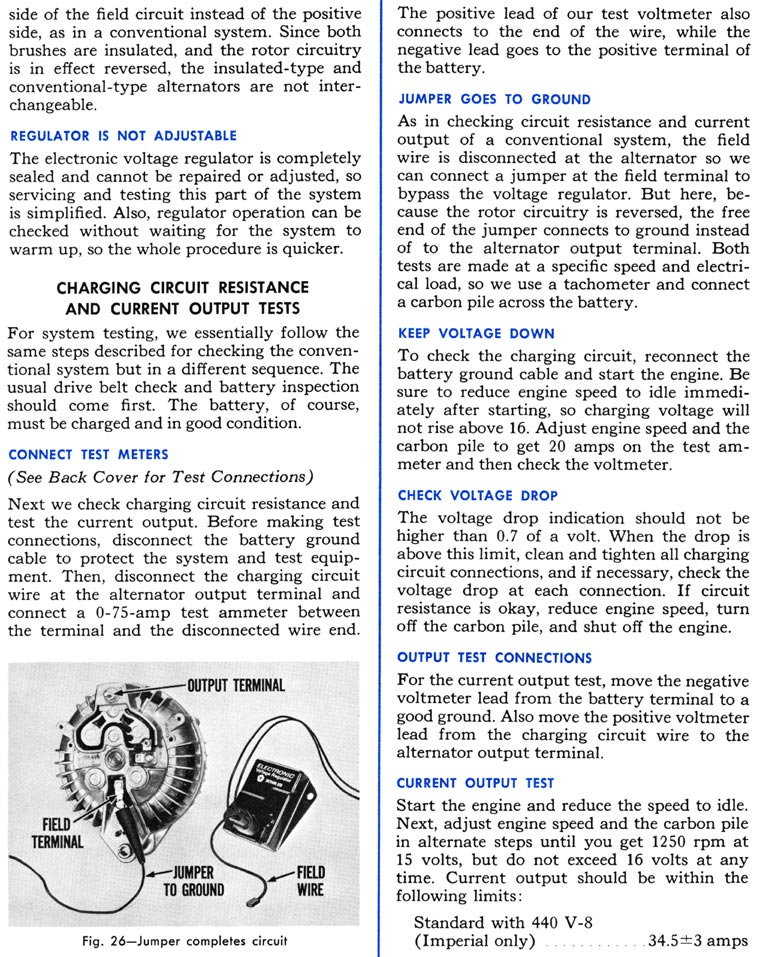

Front Cover Introduction Page & Table of Contents Page 1 - Charging System Operation Checking Page 2 - Charge Or No Charge & Other System Checks Page 3 - Conventional Charging System Tests Page 4 - Battery Tests Page 5 - Field Circuit Resistance Test Page 6 - More On Field Resistance Testing Page 7 - Charging Circuit Resistance Test Page 8 - Current Output Tests Page 9 - Voltage Regulator Operation Tests Page 10 - More On Voltage Resistance Page 11 - Electronic Regulator Tests Page 12 - Charging Circuit Resistance & Current Output Tests Page 13 - Voltage Regulator Check & Control Circuit Troubleshooting Back Cover Including Schematics For The Electronic Regulator Tests
