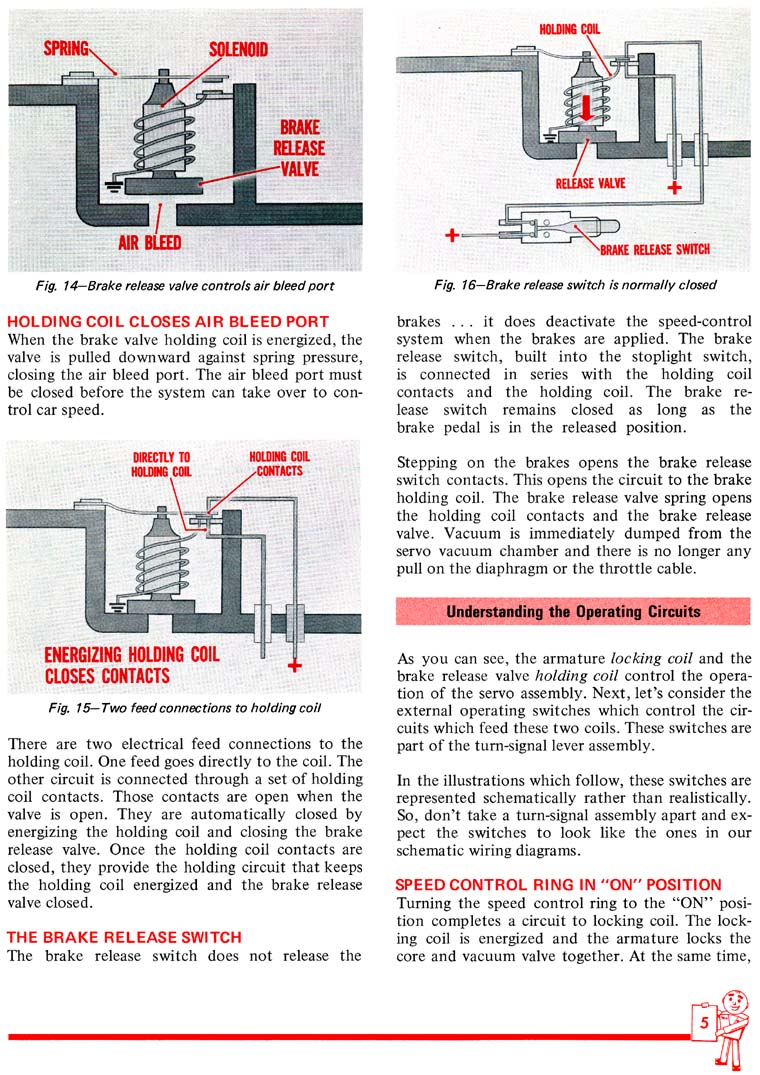

Move your way through the 1972 Imperial and Chrysler Speed Control & Concealed Headlights Reference Guide by choosing your next page. You are currently on Page 5.
Front Cover Introduction & Table Of Contents Page 1 - Introduction To The Speed Control System Page 2 - The Driver Is The Boss, Foot Brake Has Veto Power & Understanding The Circuits And Servo Page 3 - How The Governor Reacts To The Car's Speed & Governor Moving The Electromagnet Page 4 - If The Car Slows Down Or Speeds Up Page 5 - Reaction Of The Coil To Air Bleed Port & Understanding The Operating Circuit Page 6 - Speed-Set Button Reactions Page 7 - Low-Speed Lockdown Switch & The "Resume" Switch Page 8 - Servo Lock-In Speed Adjustment Page 9 - Speed-Control Throttle Cable Adjustment Page 10 - Concealed Headlights Introduction Page 11 - Circuit Components For Concealed Headlights Page 12 - Ignition Switch Tricks Page 13 - Speed Control Schematic Circuit Diagrams Back Cover
Go back Page 4 Go on to Page 6
Close this window to return to 1972 Speed Control & Concealed Headlight's Table of Contents.

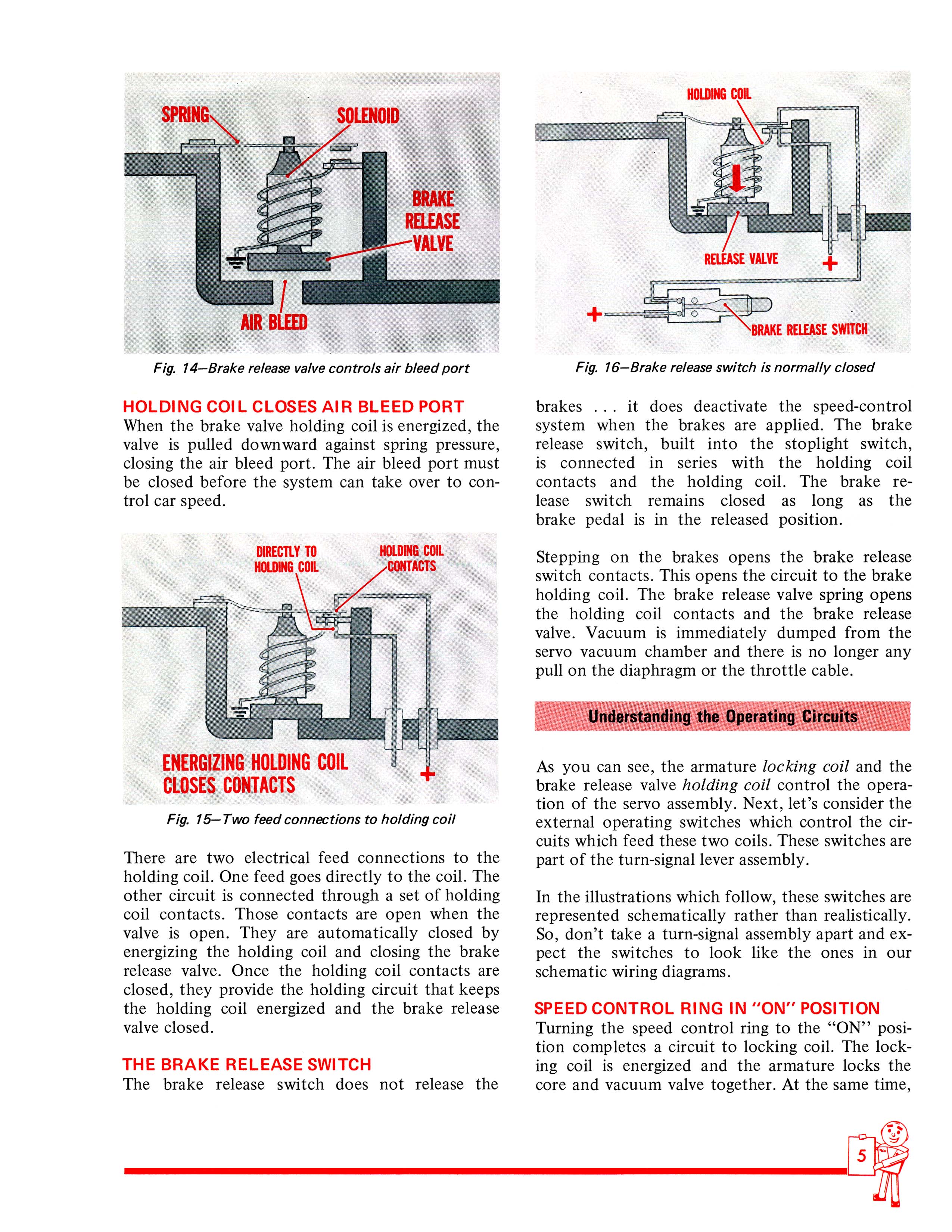

We also have a much larger, printable version of this page available. This booklet was originally 8.5" x 11".
