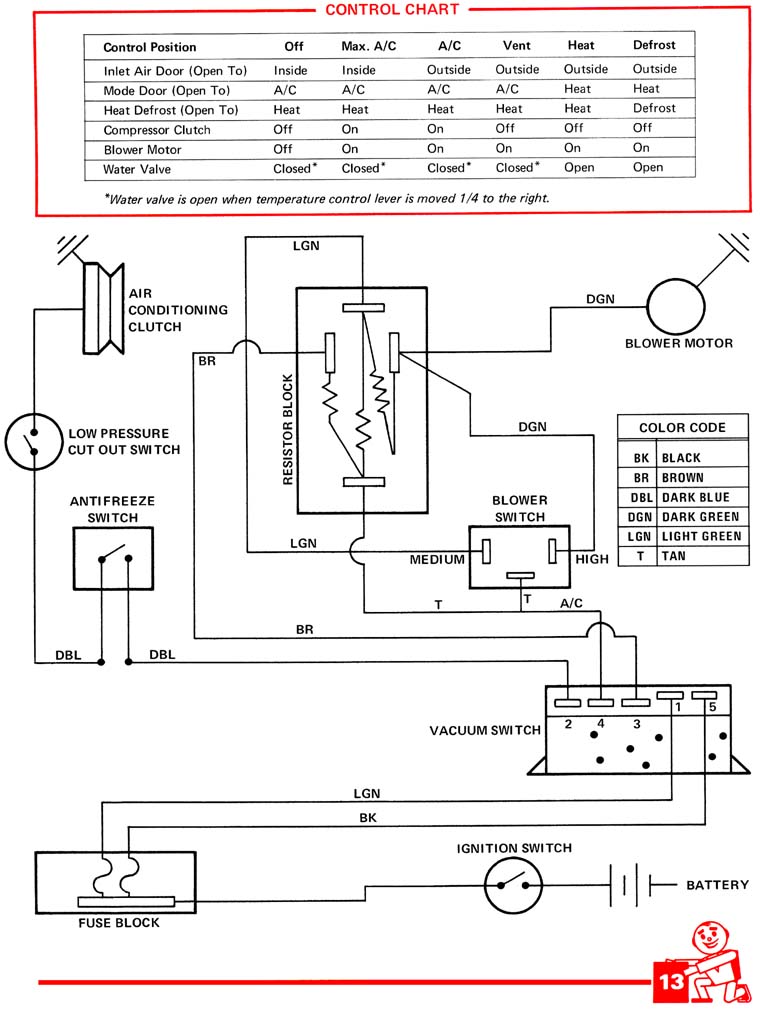

Move your way through the 1973 Valiant & Dart Air Conditioning Reference Guide by choosing your next page. You are currently on Page 13.
Front Cover Introduction Page & Table of Contents Page 1 - Introduction To The 1973 Valiant & Dart Air Conditioning & A Summary Of The Changes Page 2 - The Non-Adjustable Antifreeze Switch & Basic Air Flow Control Page 3 - The Blend-Air Door Is An Air Flow Switch & The Air-Conditioning/Heater Door Page 4 - The Heat/Defrost Door, The Water Flow Valve & Selector Lever Replaces Pushbuttons Page 5 - Combination Electric/Vacuum Switch & The Vacuum Part Of The Switch Page 6 - The Temperature Control Lever & The Inlet Air Door Page 7 - The Antifreeze Switch, Blower Circuit Resistor Block & The Evaporator Housing Assembly Page 8 - Drain Tube Service Tips, Don't Cut The Drain Tube & The Blend-Air Door Page 9 - The Mode Door & The Heat/Defrost Door Page 10 - Selector Door In The "Off" Position, In The "Max A/C" Position, In The "A/C" Position Page 11 - Selector Lever In The "Vent" Position, In The "Heat" Position & In The "Defrost" Position Page 12 - Conclusion & Test Questions Page 13 - Air Conditioning Lever Control Flow Chart Back Cover
Go back to Page 12 Go on to the Back Cover
Close this window to return to the 1973 Valiant & Dart Air Conditioning's Table of Contents.

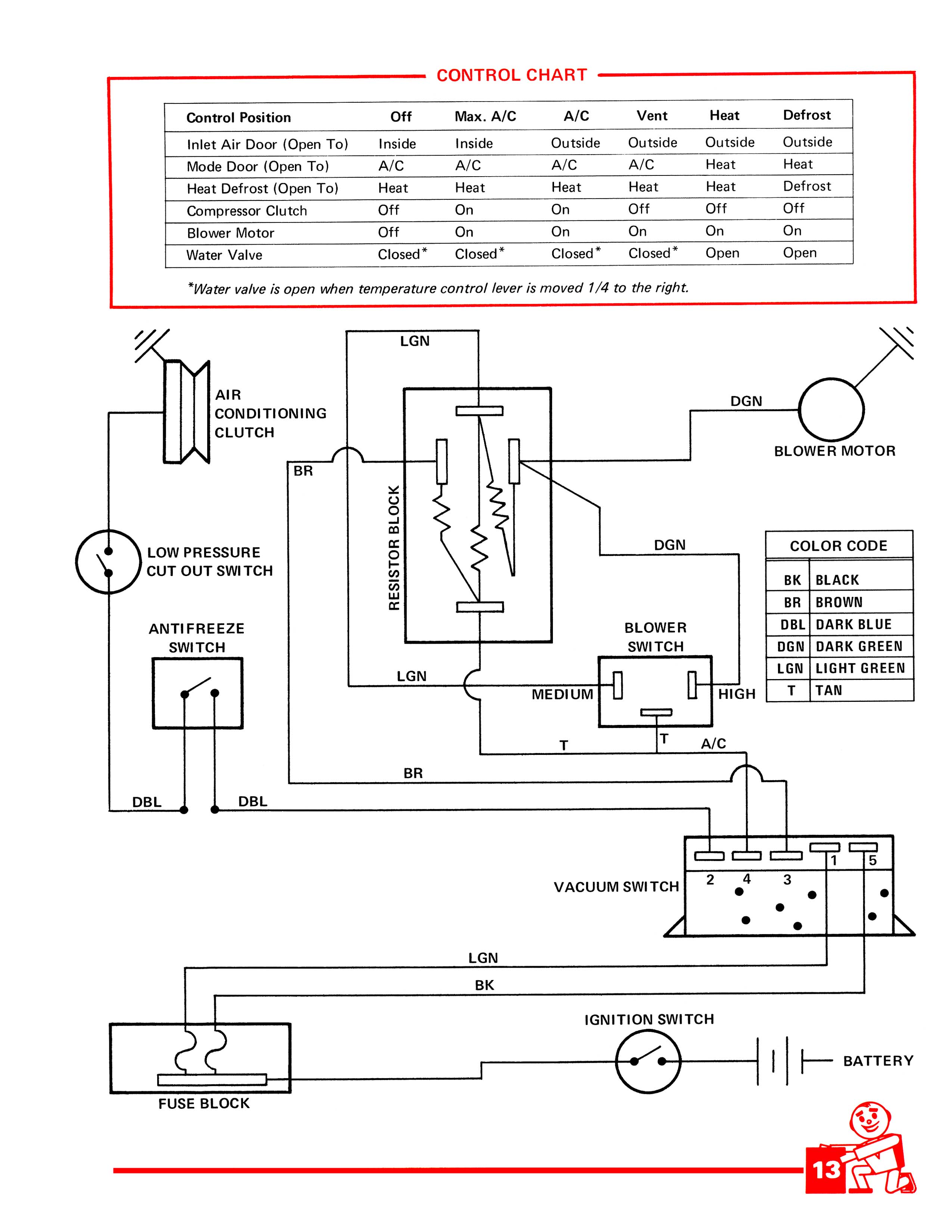

We also have a much larger, printable version of this page available. This booklet was originally 8.5" x 11".
