1948 Illustravox Standard

Sound Slide-Film Unit


Imperial Home Page -> Repair -> Literature -> Master -> Projector

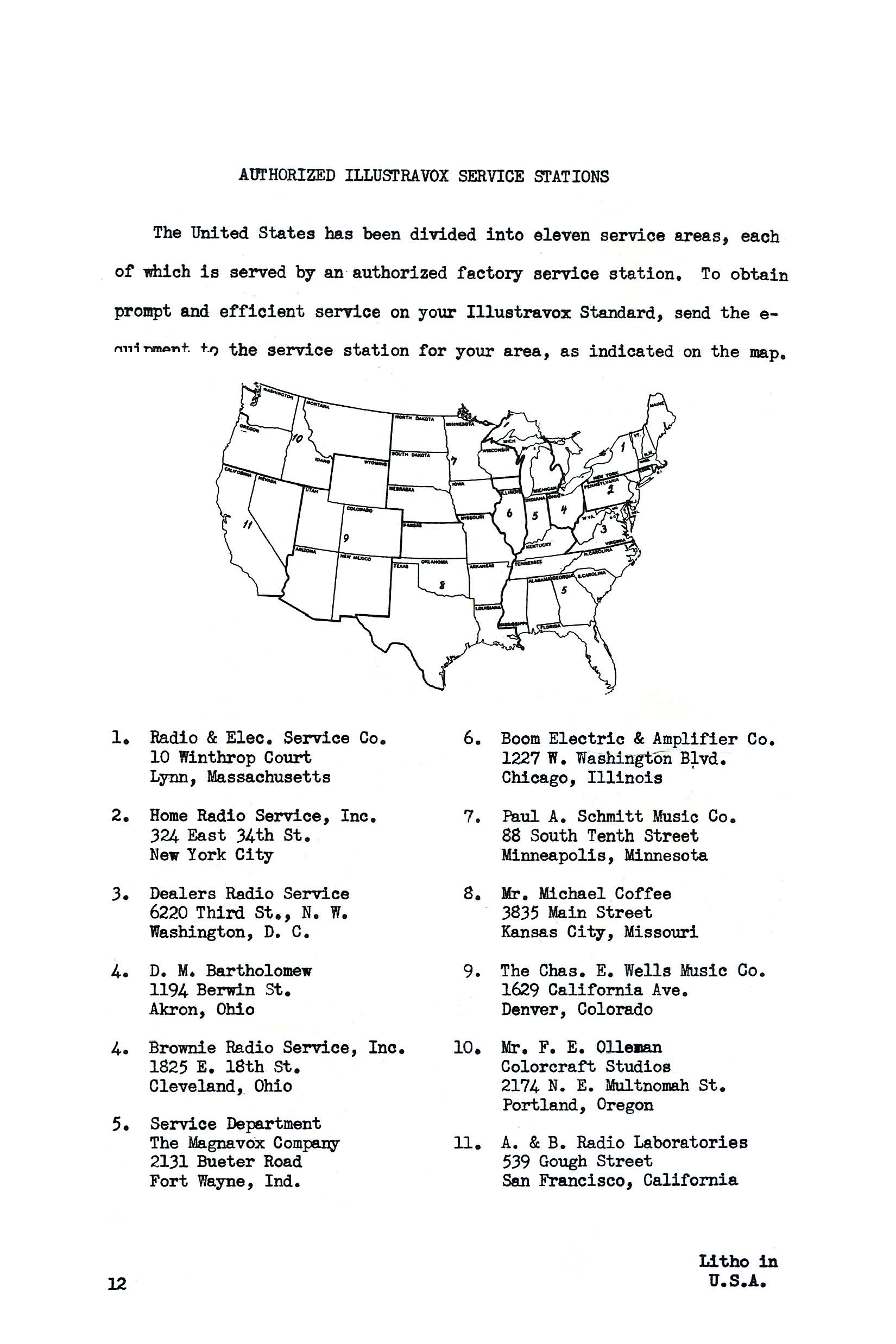

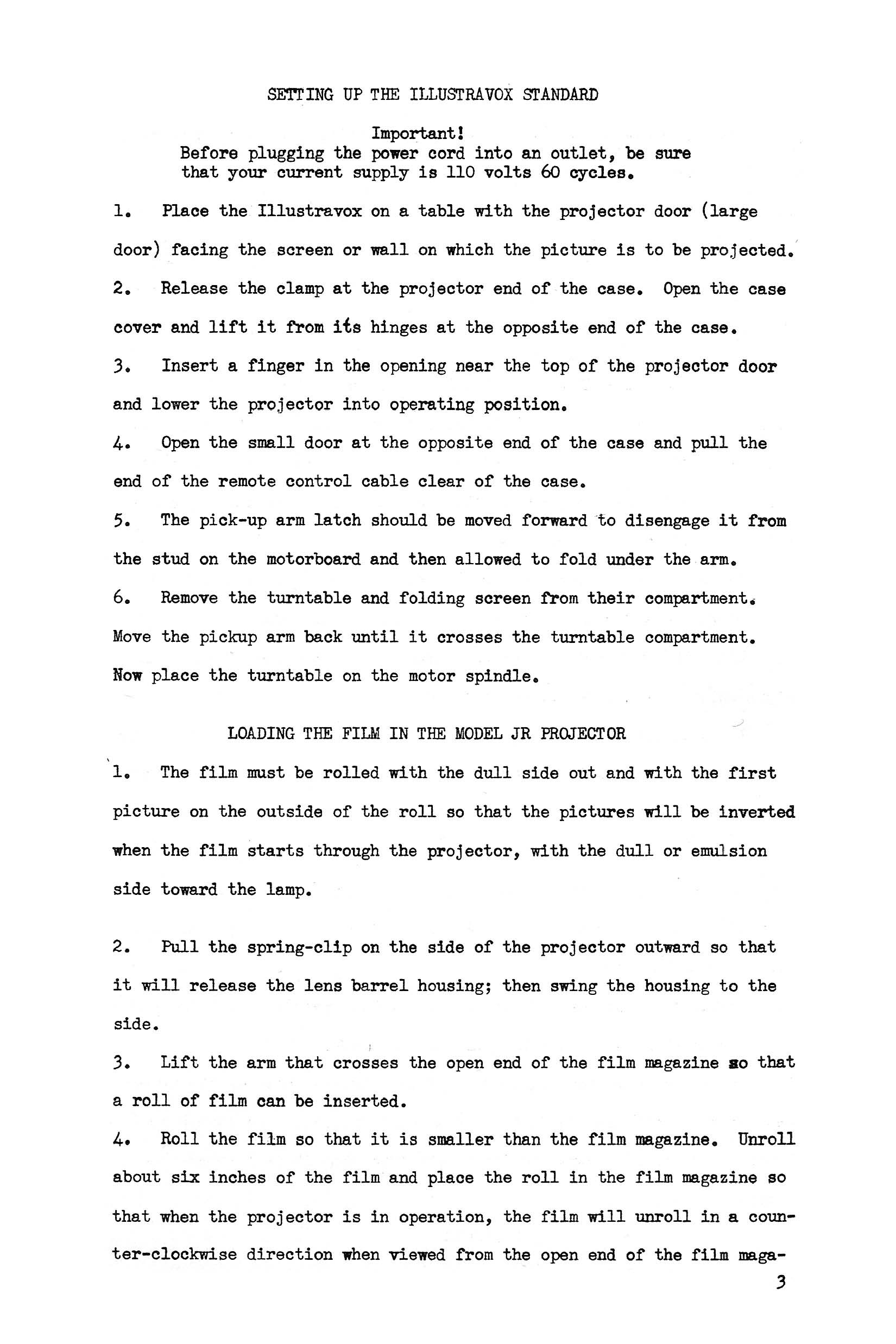

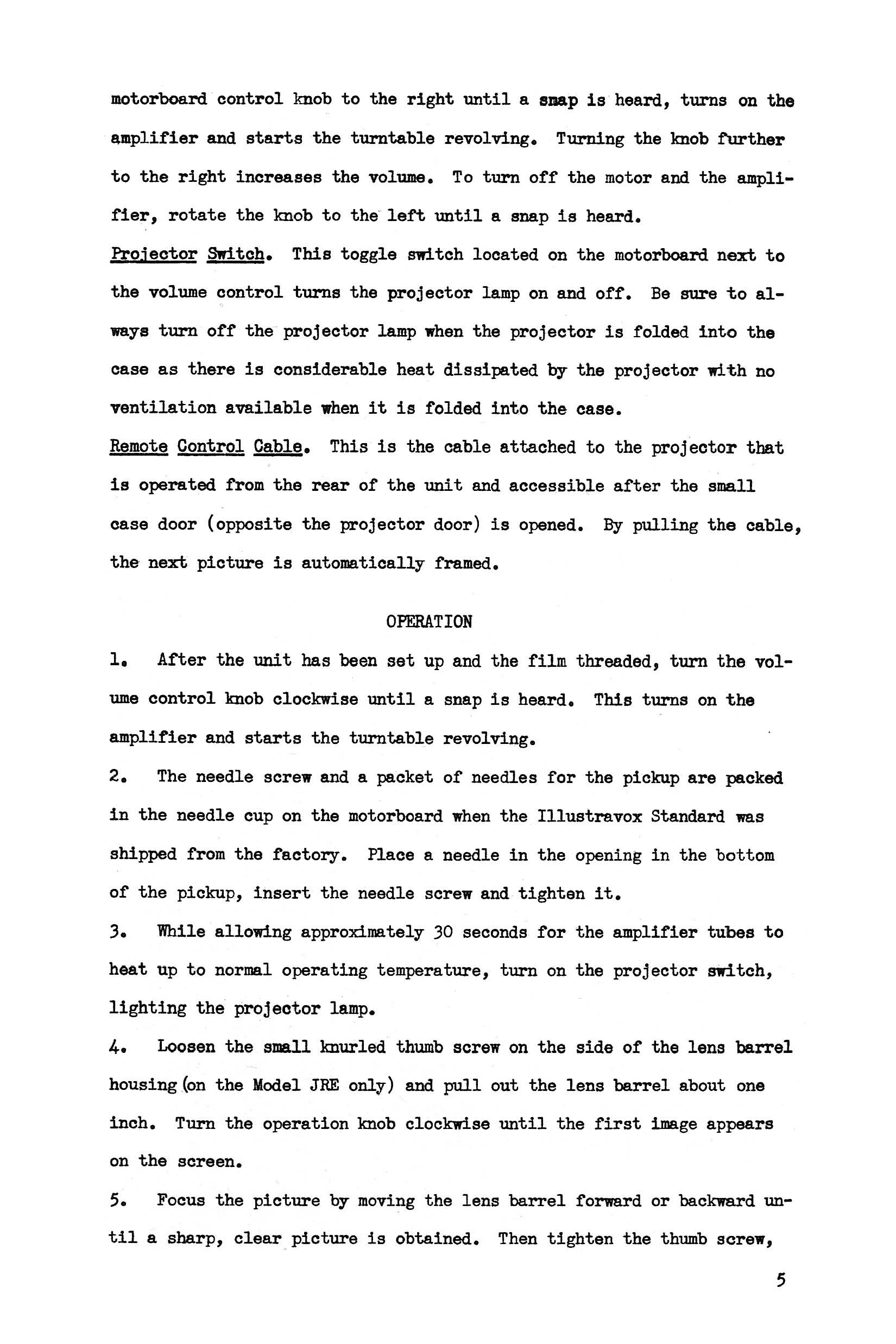

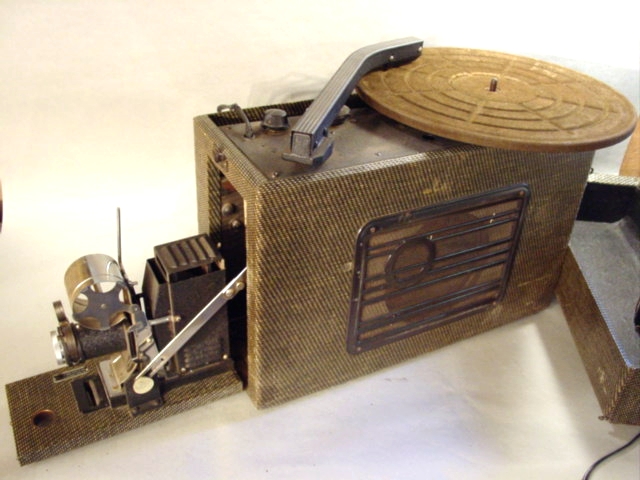

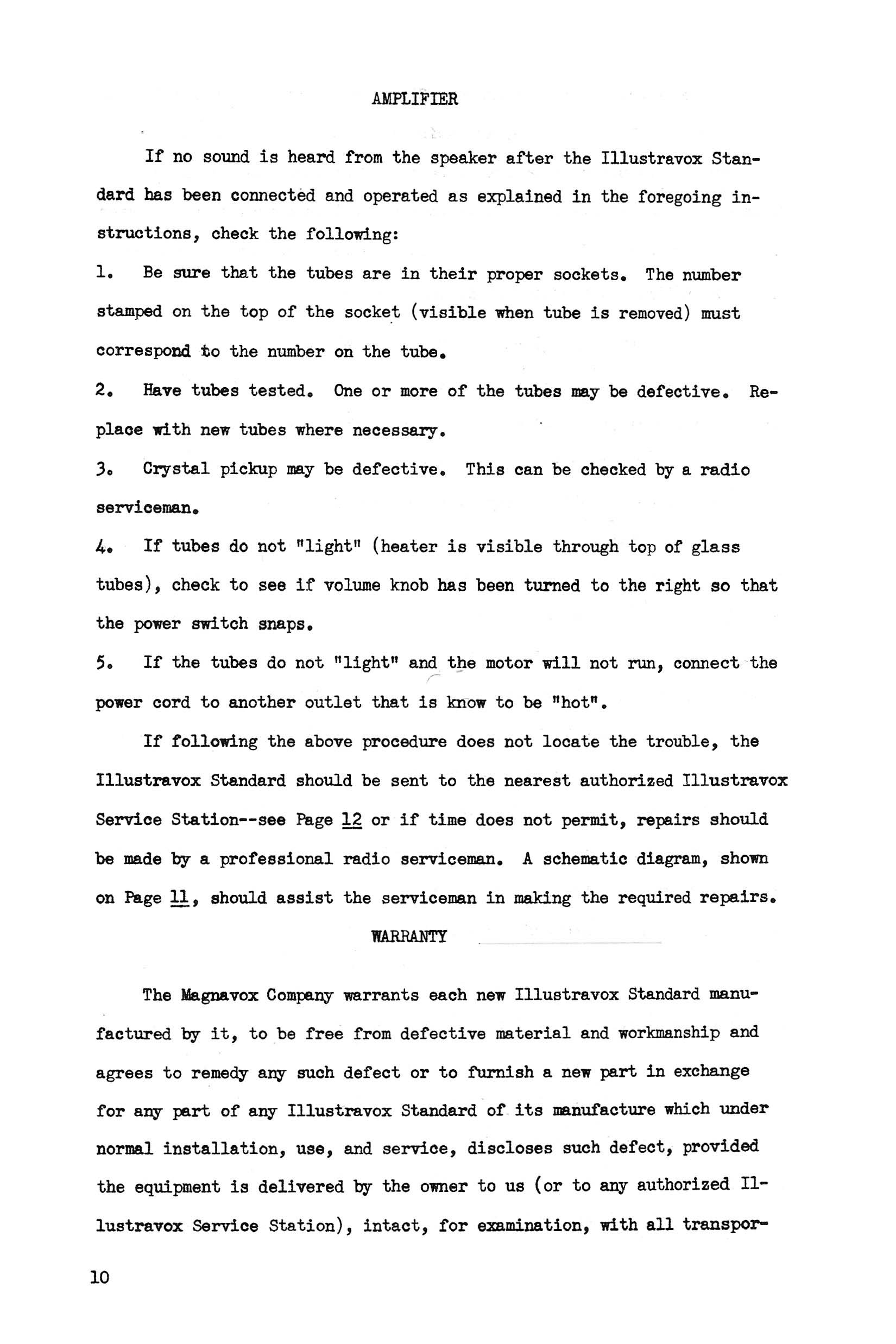

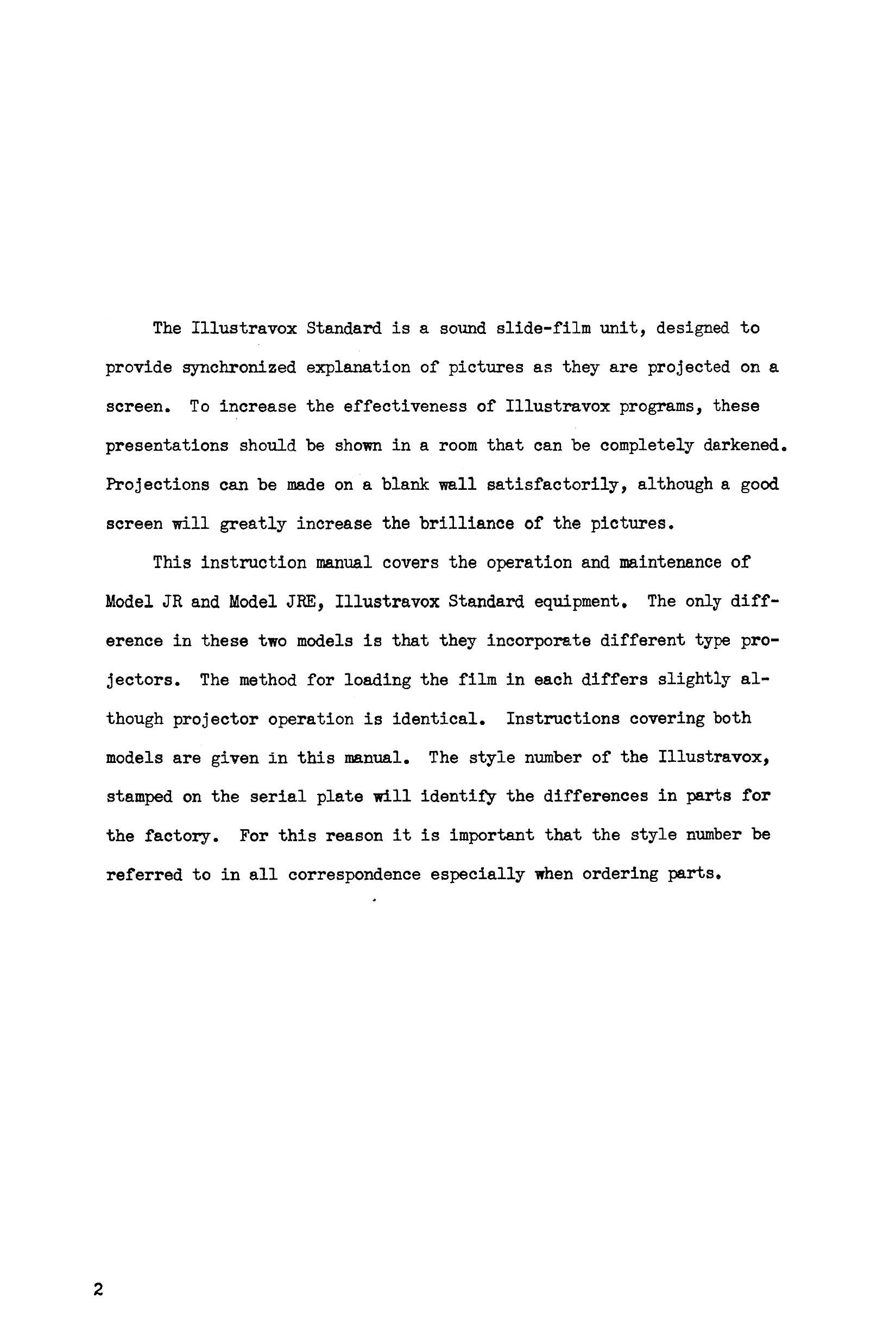

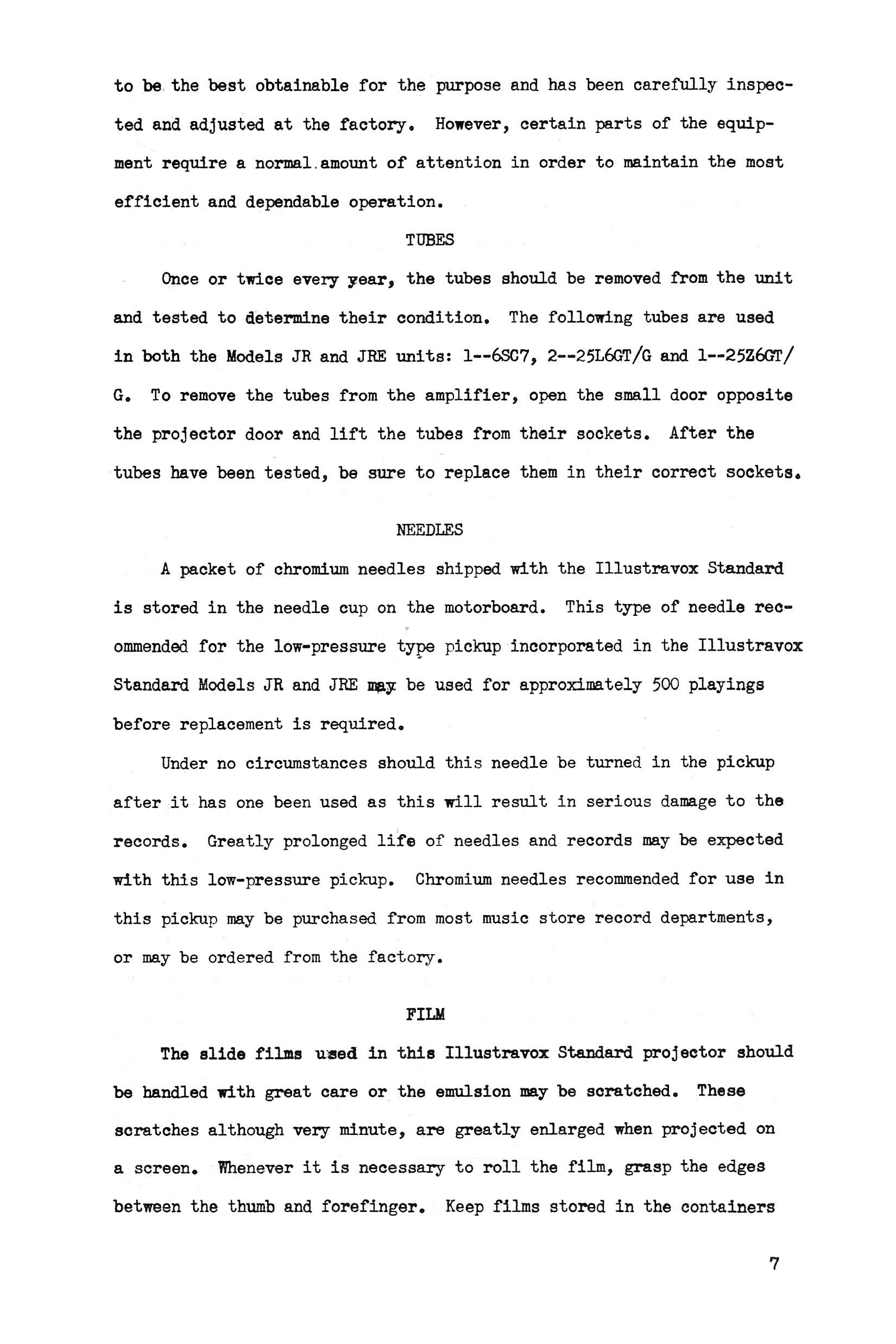

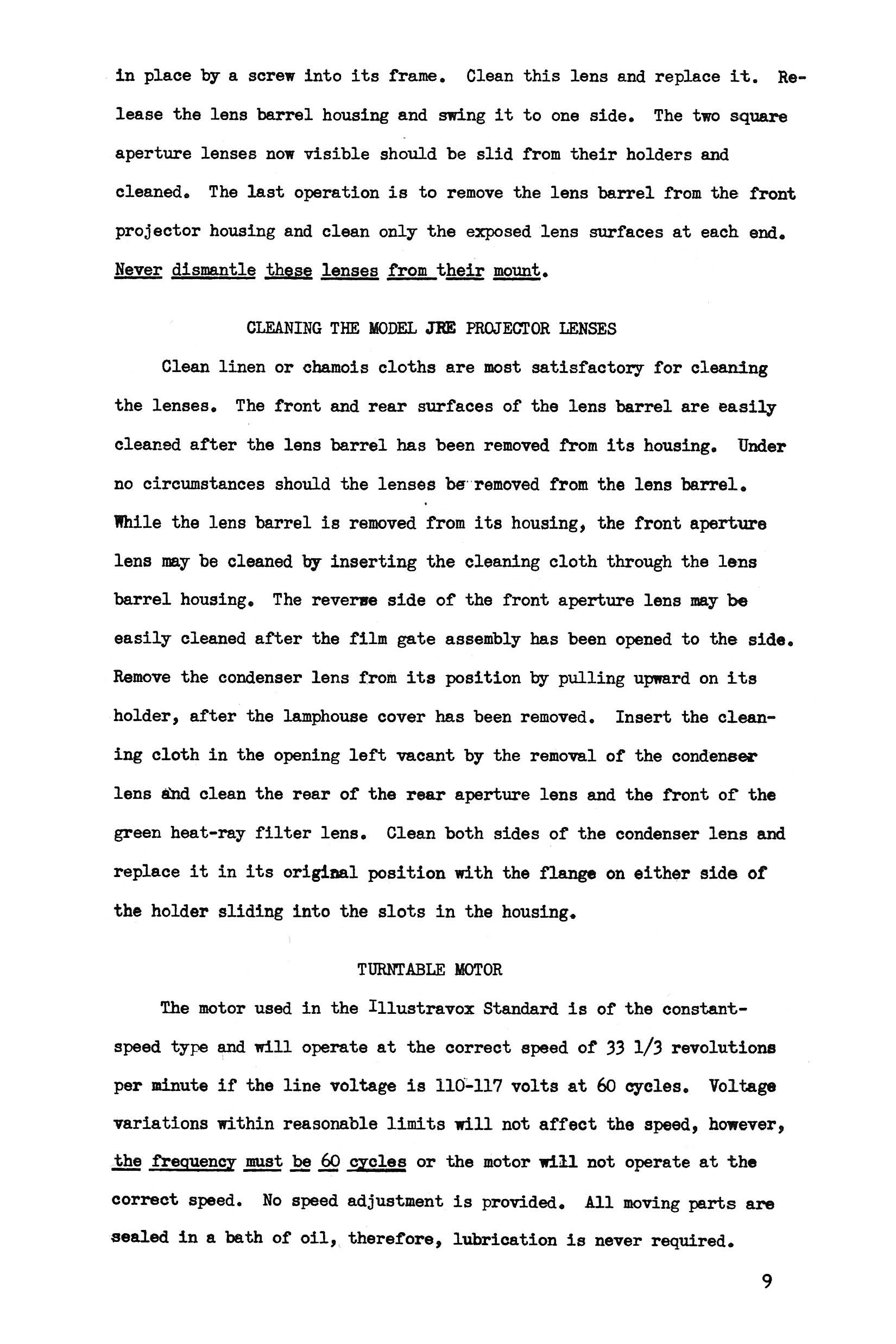

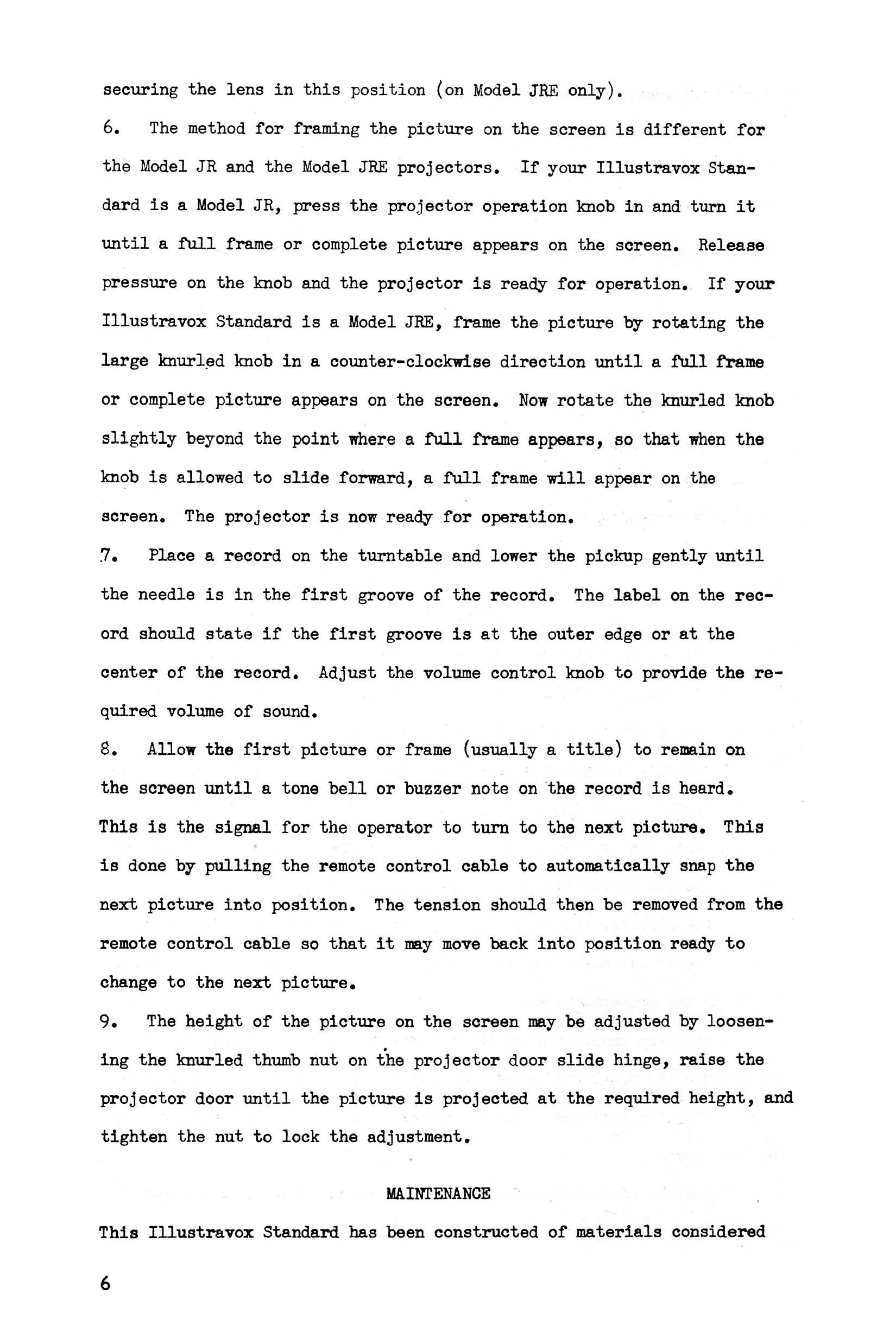

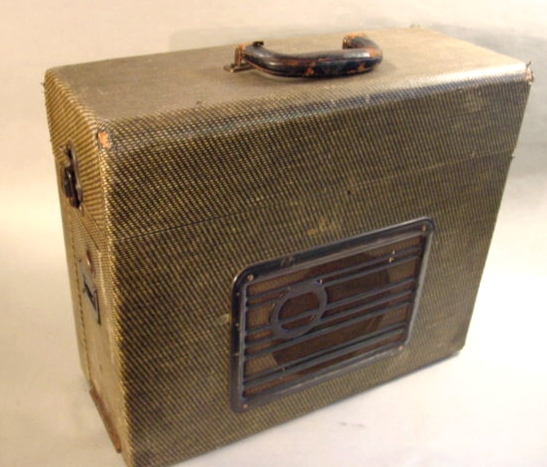

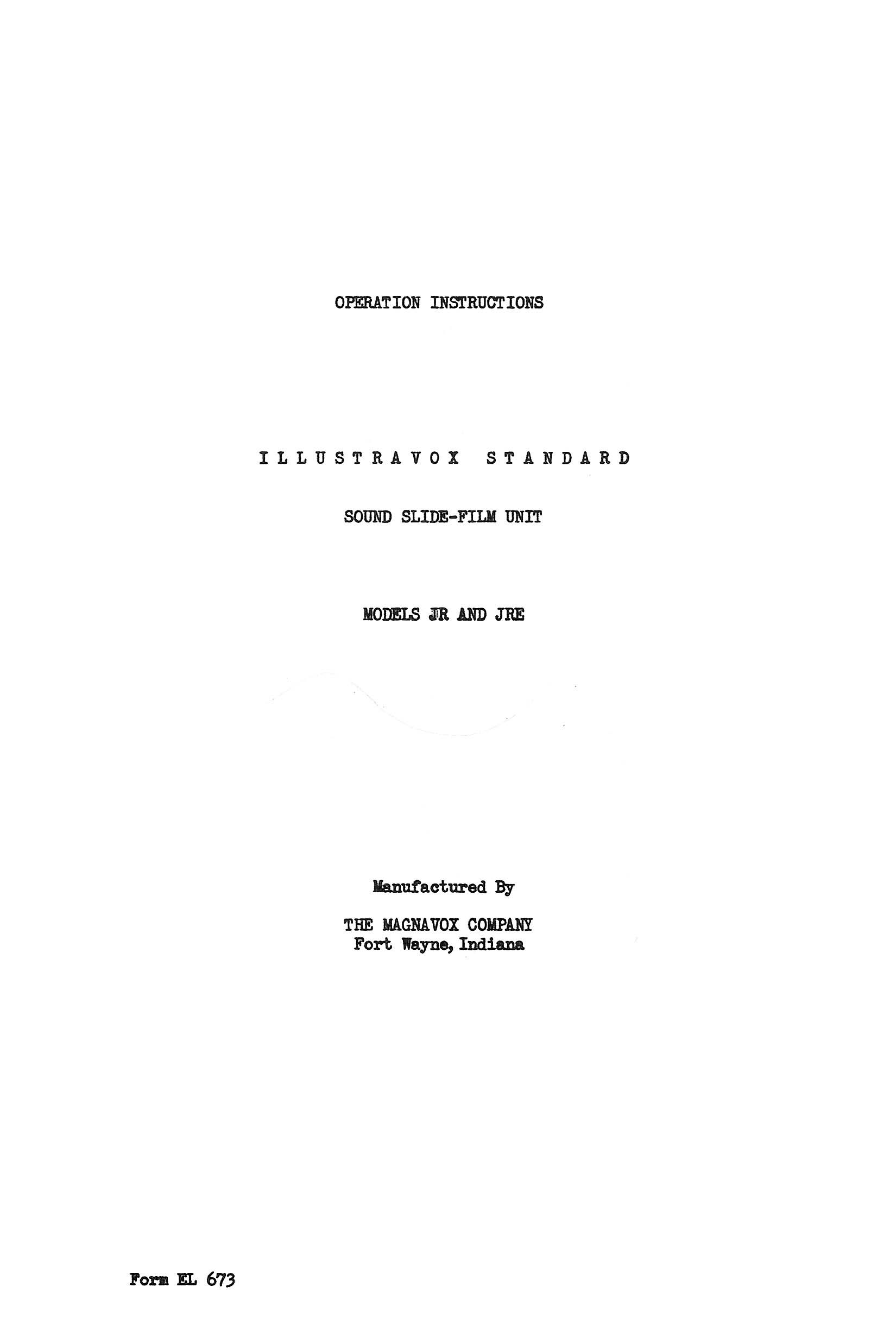

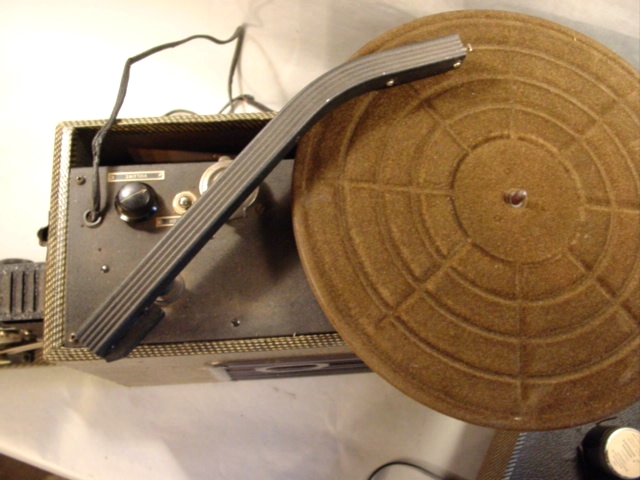

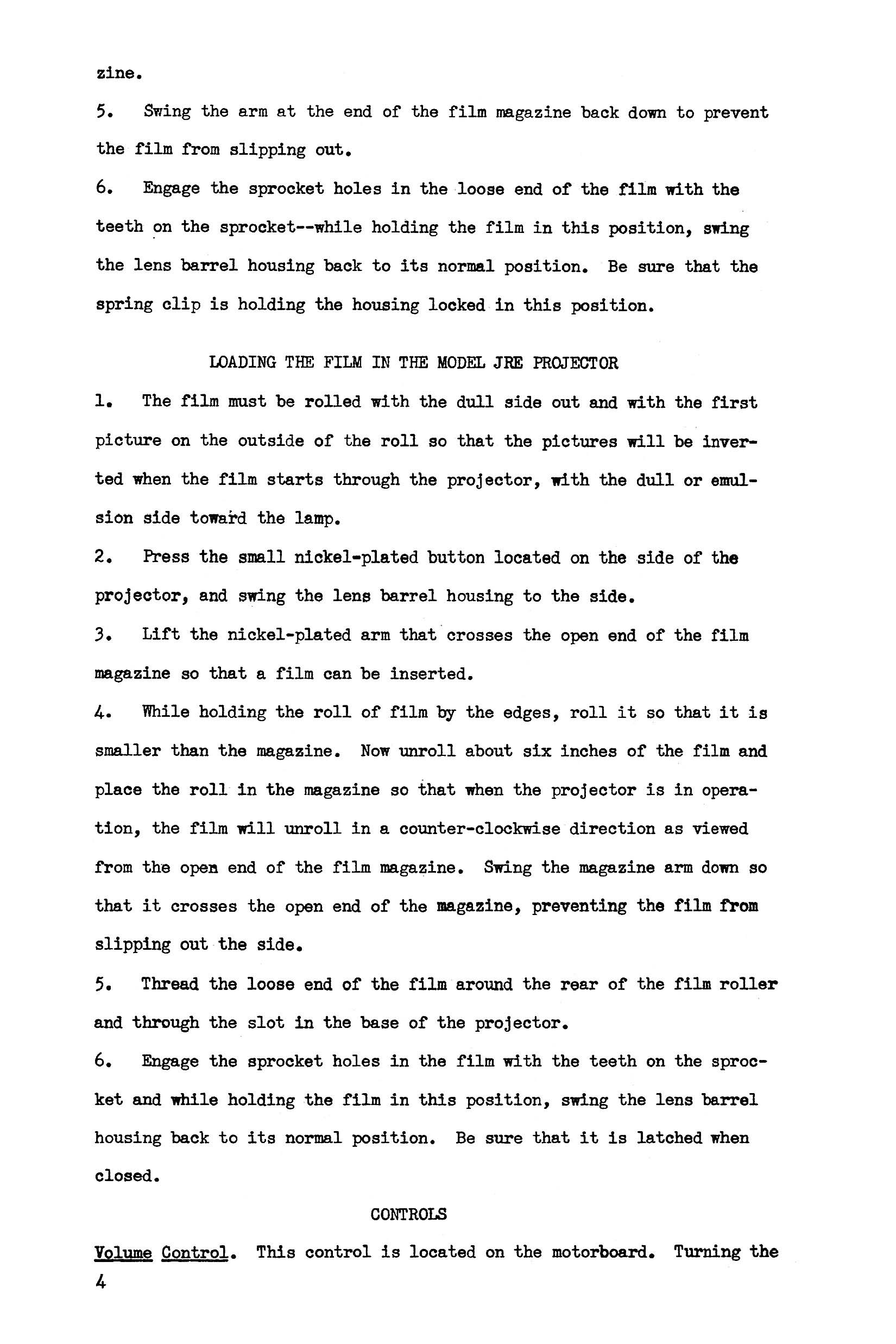

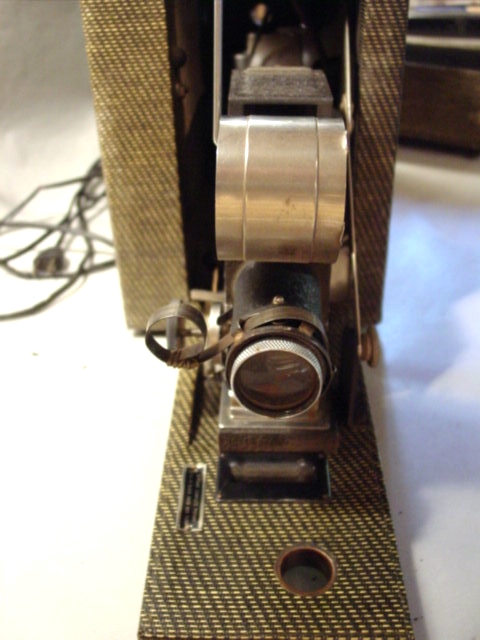

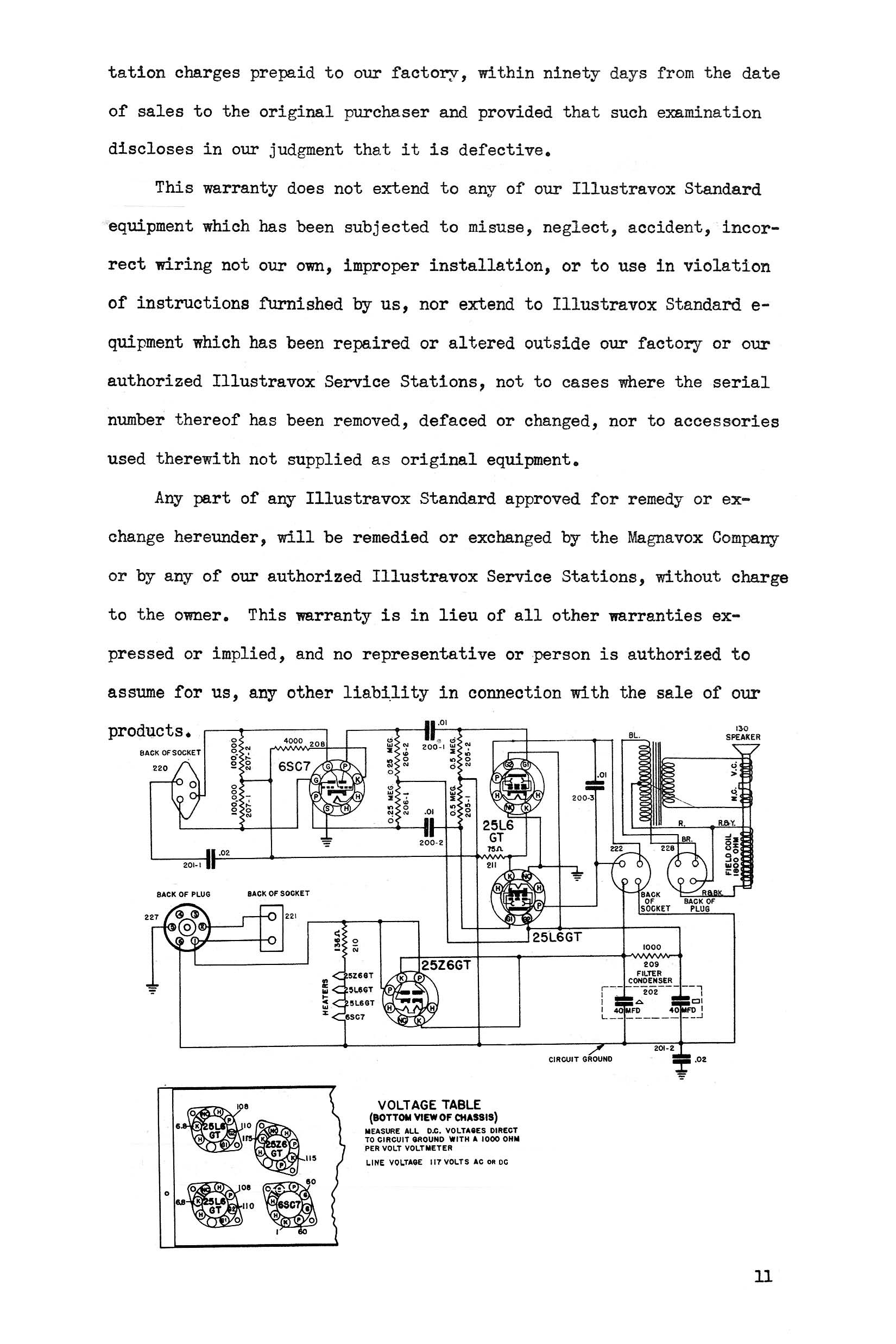

The Illustravox Projector was provided to Chrysler Service groups to provide the "Multi-Media" for the Master Technician Service Conference series. This user guide is for the 1948 model JR and JRE. Pictured is the JR model. Be sure to check out the schematic in case you'd like to fix one of these babies!


(Click on any small image to view a larger image.)
