1959 Imperial Air Conditioning Service Manual

(Click on any of the images for a full size version.)

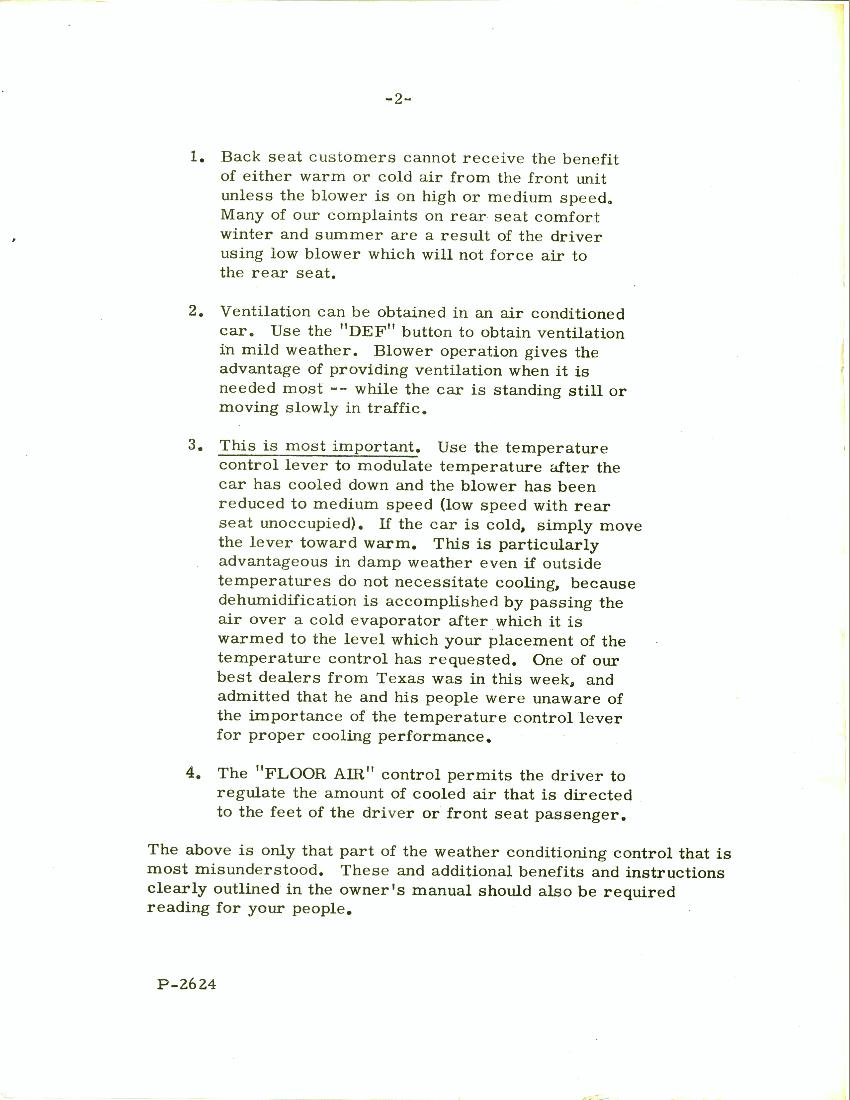

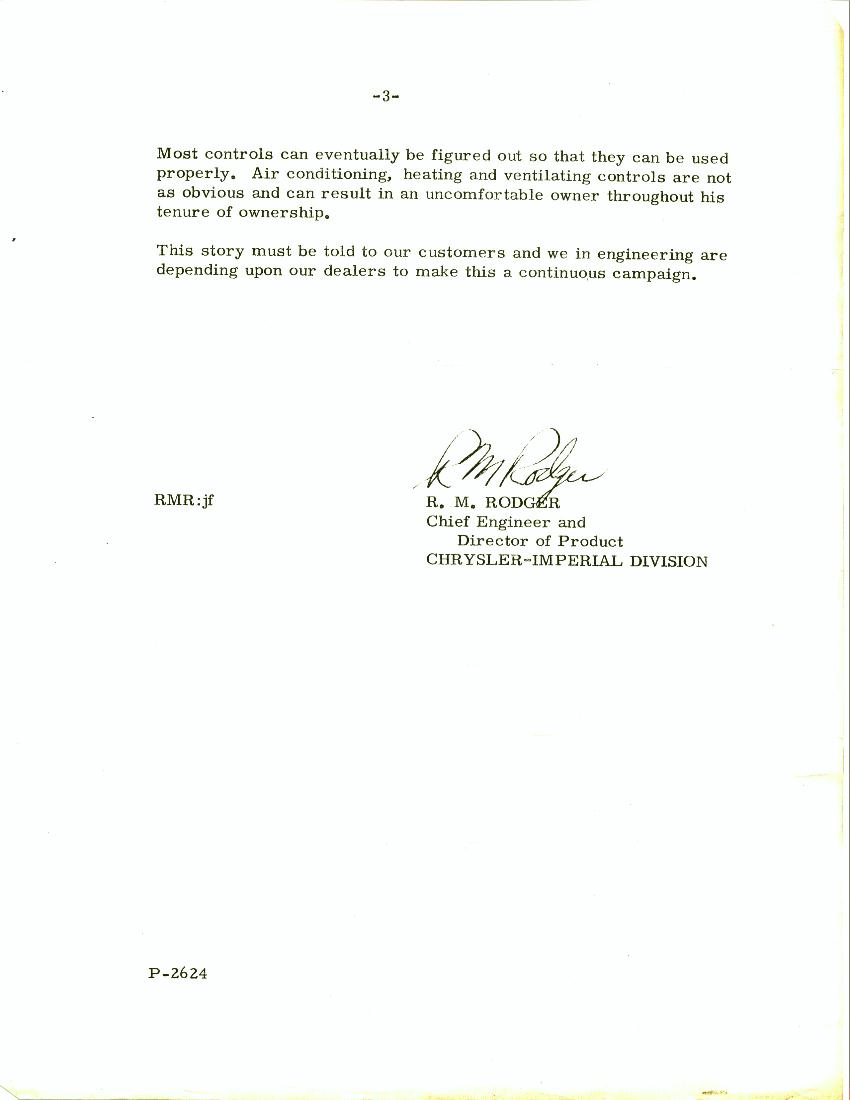

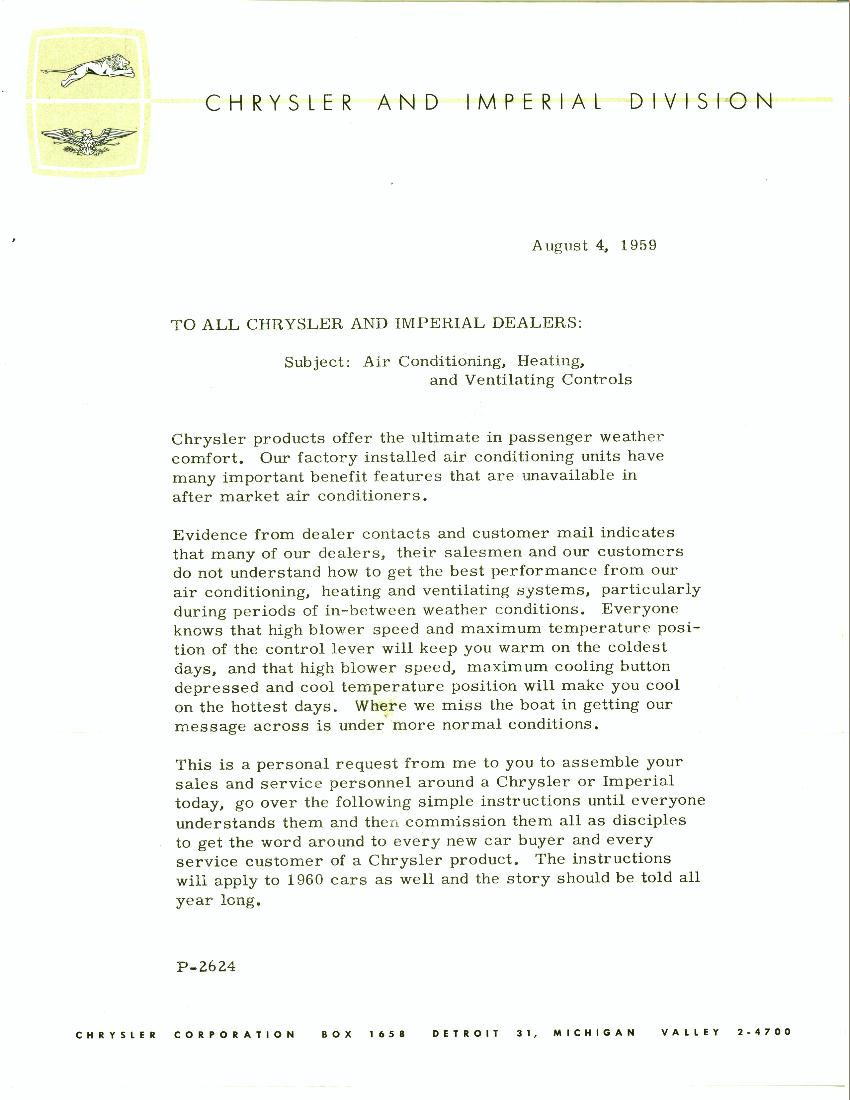

First there is a letter from R.M. Rodger concerning the proper operation for Air Conditioning:

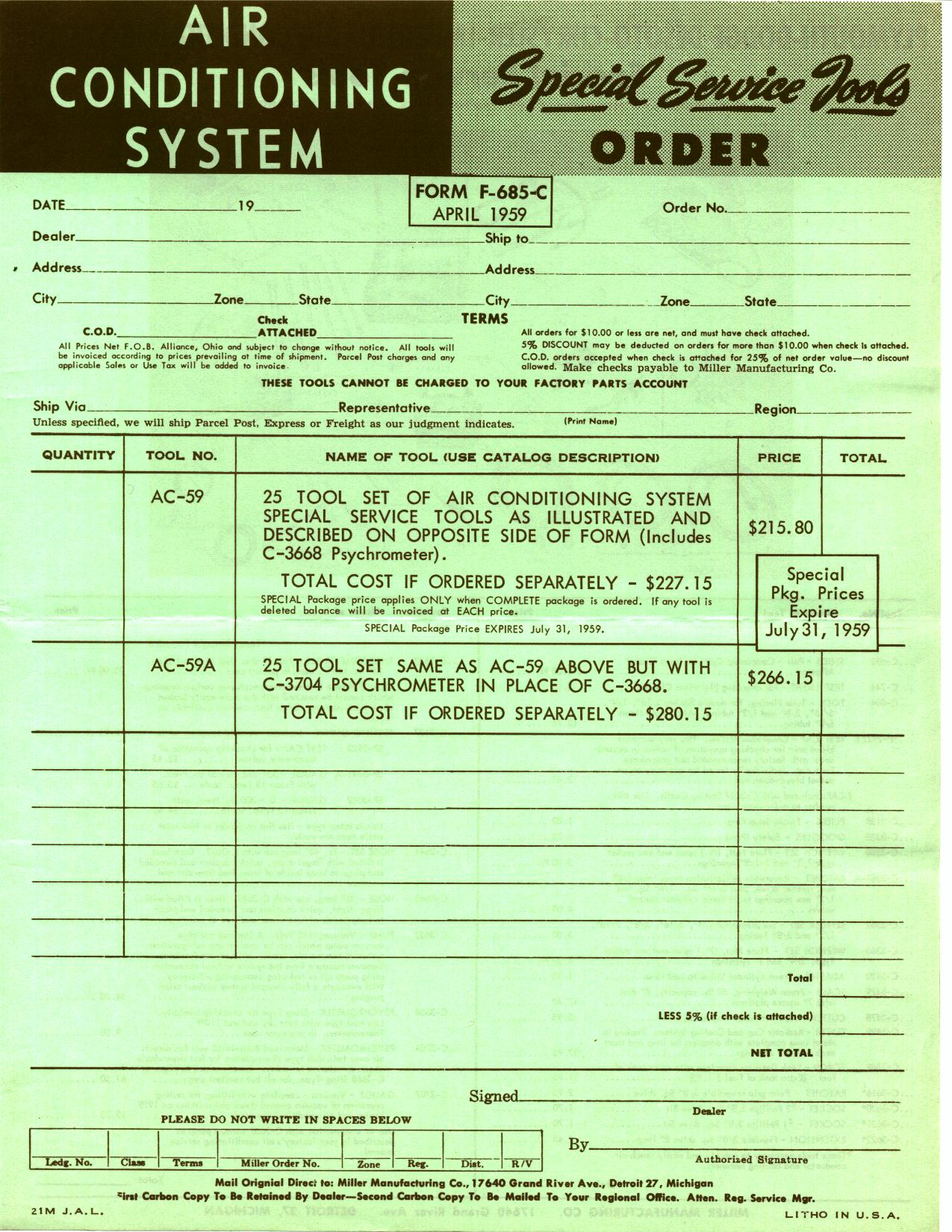

Next is an order form for the special Air Conditioning tools:

Finally the Air Conditioning Service Instruction Manual:

• Index from the manual
• General Description Front End Unit......................................2
• Test Procedure - Front End Units, Single and Dual Systems...............4
• Thermal Switch Test.....................................................19
• Test Procedure - Trunk Units, Singe and Dual Systems....................21
• Test Procedure - Roof Units of Dual Systems.............................23
• Operations and Function of an Expansion Valve...........................24
• Compressor Capacity Test................................................27
• Expansion Valve Super Heat Test.........................................31
• Compressor Installation and Reinstallation to Engine....................32
• Charging of Systems with Can Refrigerant................................33
• Causes of Excessive Pressures and Corrections...........................37
• Anti-Freeze in Cooling System for Summer Operation......................37
• Suggestion for Owner in Operation of Air Conditioning System............38
• Refrigerant Capacity of Chart of the Various Installations..............39
• Temperature-pressure Relation Chart for Refrigerant 12..................40
• Air Flow and Vacuum Hoses Activated Charts for All Button Positions.....41
• Performance Temperature Charts for all Factory Type Installations.......43
• Wiring Diagrams for Factory Type Installations..........................47
• Air Conditioning Tool List..............................................51
