1963 Imperial Bendix Radio Repair Information
& Schematic

Imperial Home Page -> Imperials by Year -> 1963 -> Bendix Radio

Click on the thumbnail pictures below in order to view the 1963 Bendix Service Manual for the 1963 Imperial Electro-Touch Tuner Radio.

For very large printable versions of these pages, you can also click here.

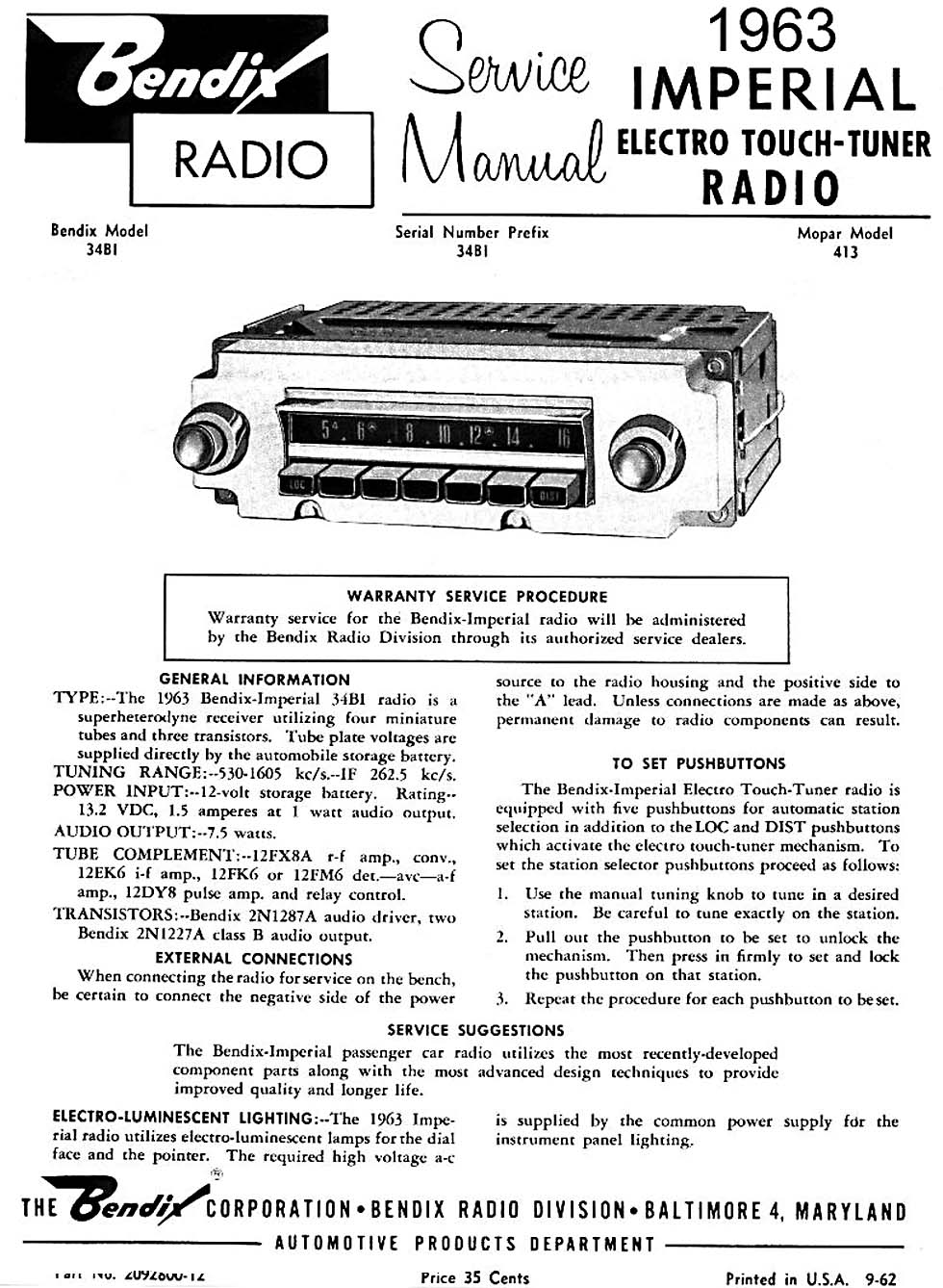

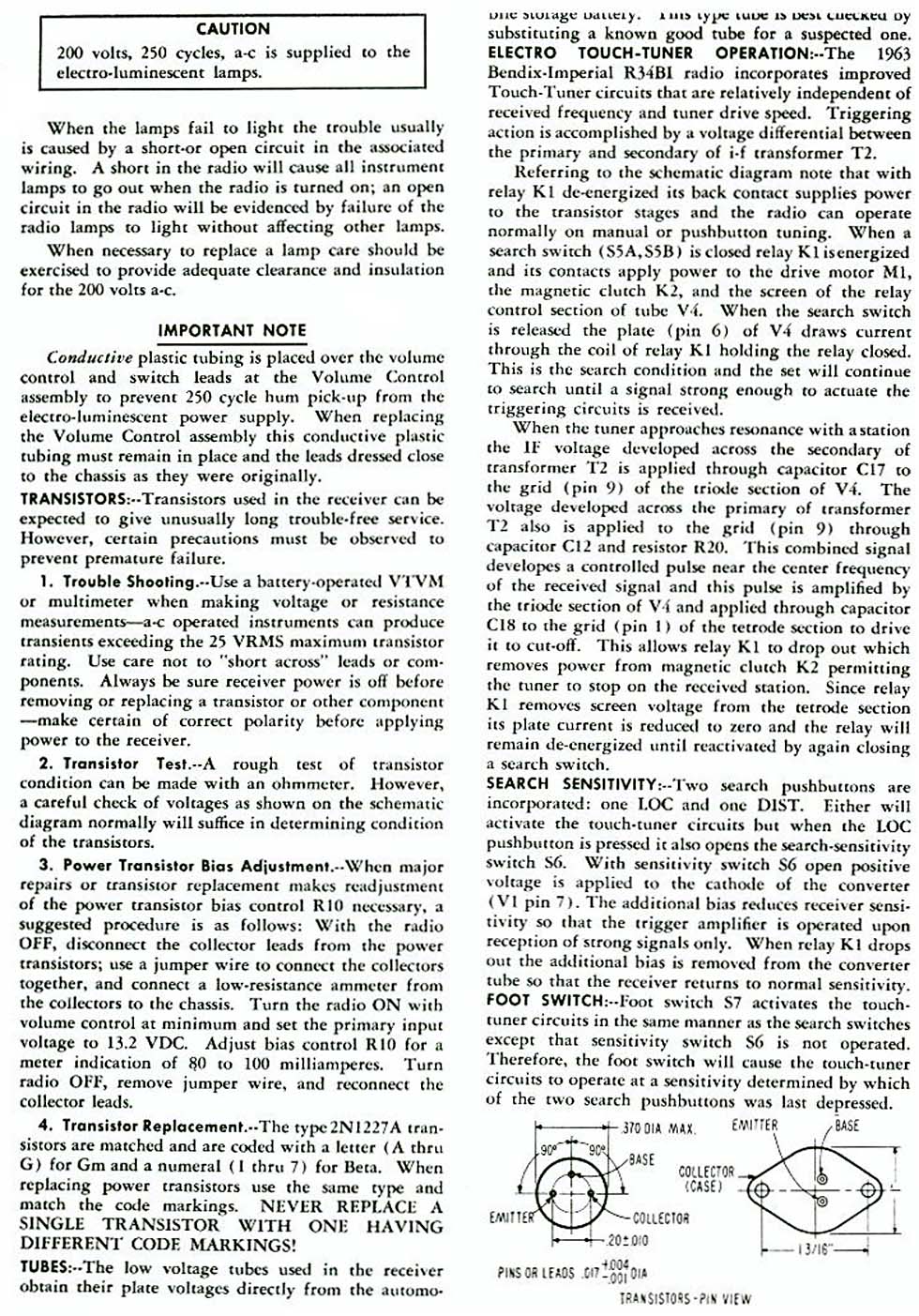

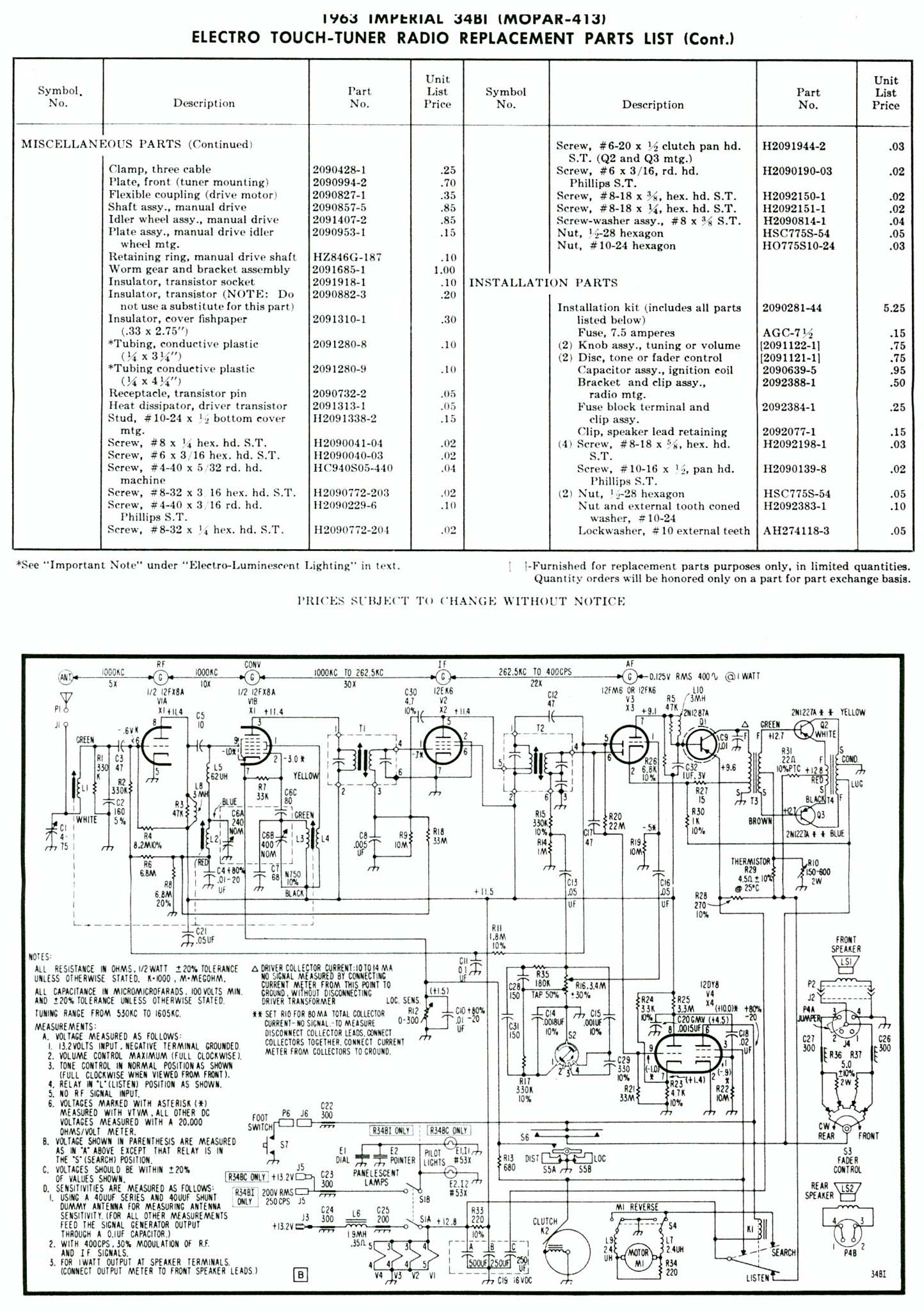

Page 1: Introduction Page 2: Important Notes & Troubleshooting Page 3:  Parts List con't & Schematic of radio to speakers

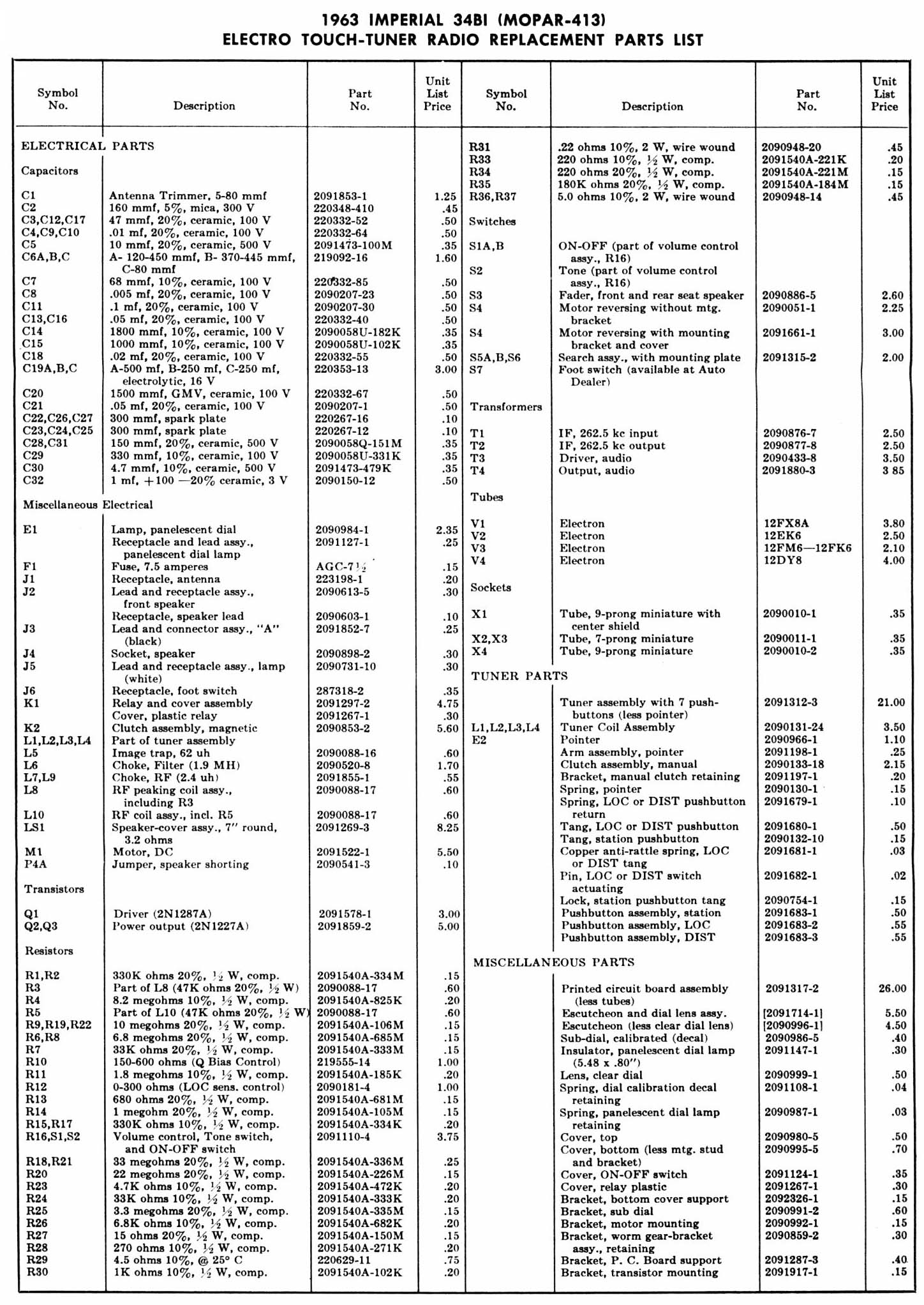

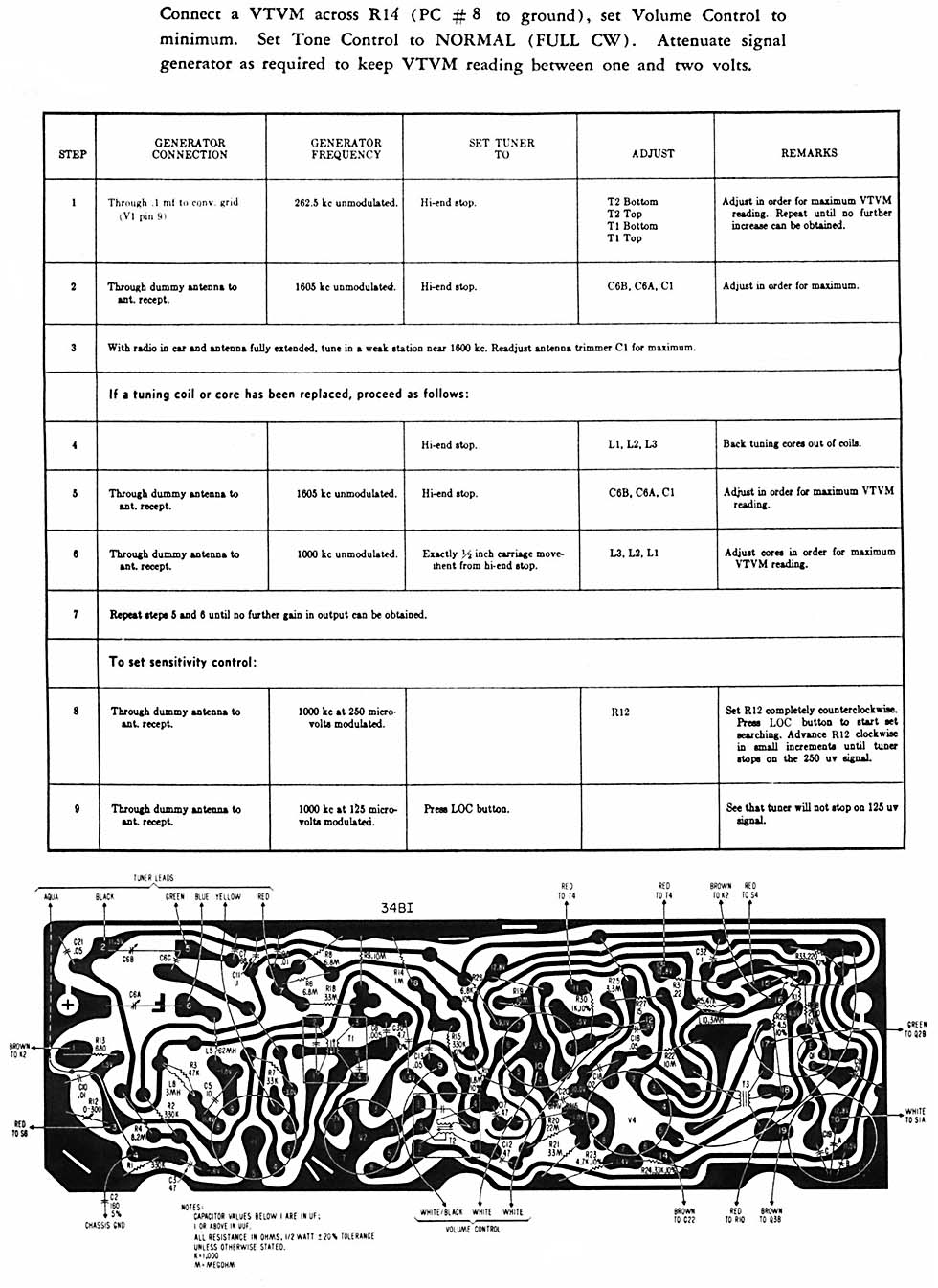

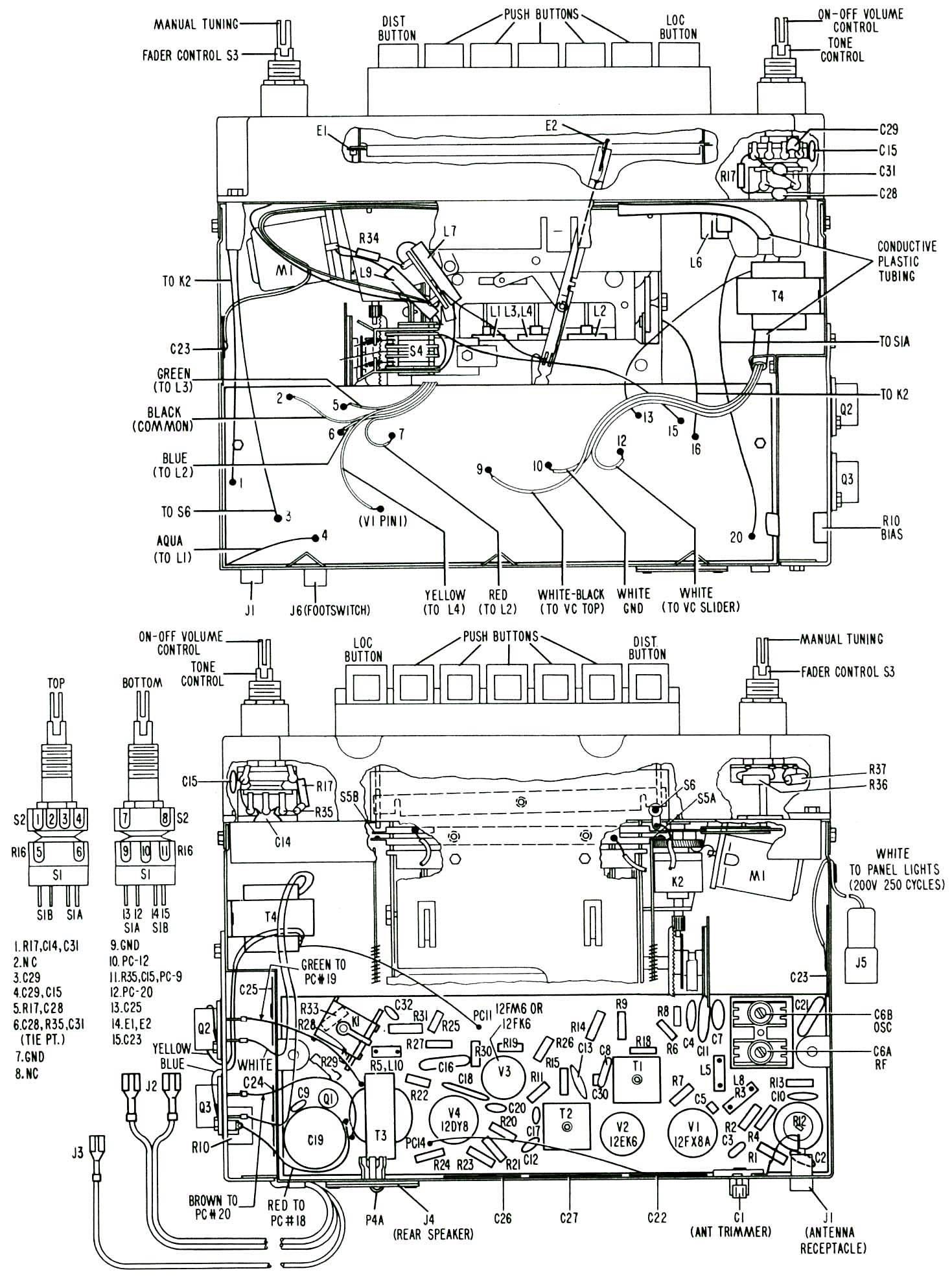

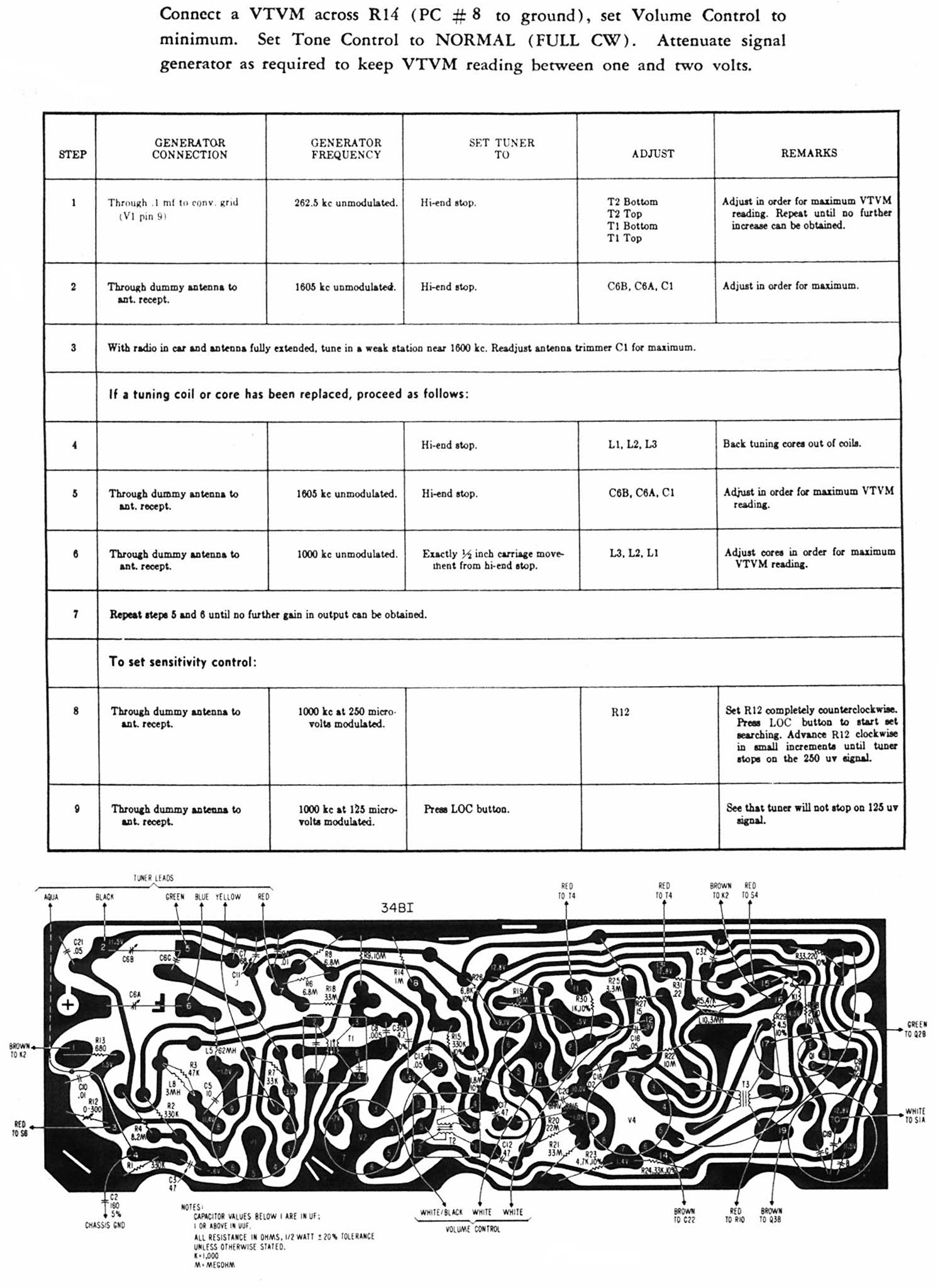

Page 4: Part Replacement List Page 5: Internal Schematic Page 6: Step by Step repair









Page 1 Page 2 Page 3
Page 4 Page 5 Page 6


Having trouble with printouts coming out way too small, or pieces of a document printing acro  ss   sev   eral  page   s?

Then go to our "How To Print Imperial Literature" page to learn how to print an item at the size you'd like.
