These 1967 Imperial wiring diagrams are taken from the Factory Service Manual.
Two versions of each diagram are available:
- Low resolution
- Since the printed diagrams use tiny lettering, these scans must be displayed larger than the originals in order to keep them readable at low resolution. As a result, they may not fit entirely within your browser window.
- High resolution
- These are suitable for printing at the same size as the originals, i.e. one diagram per page. Although these files are quite large, you may decide that better readability on the printed page is worth the extra downloading and printing time required.

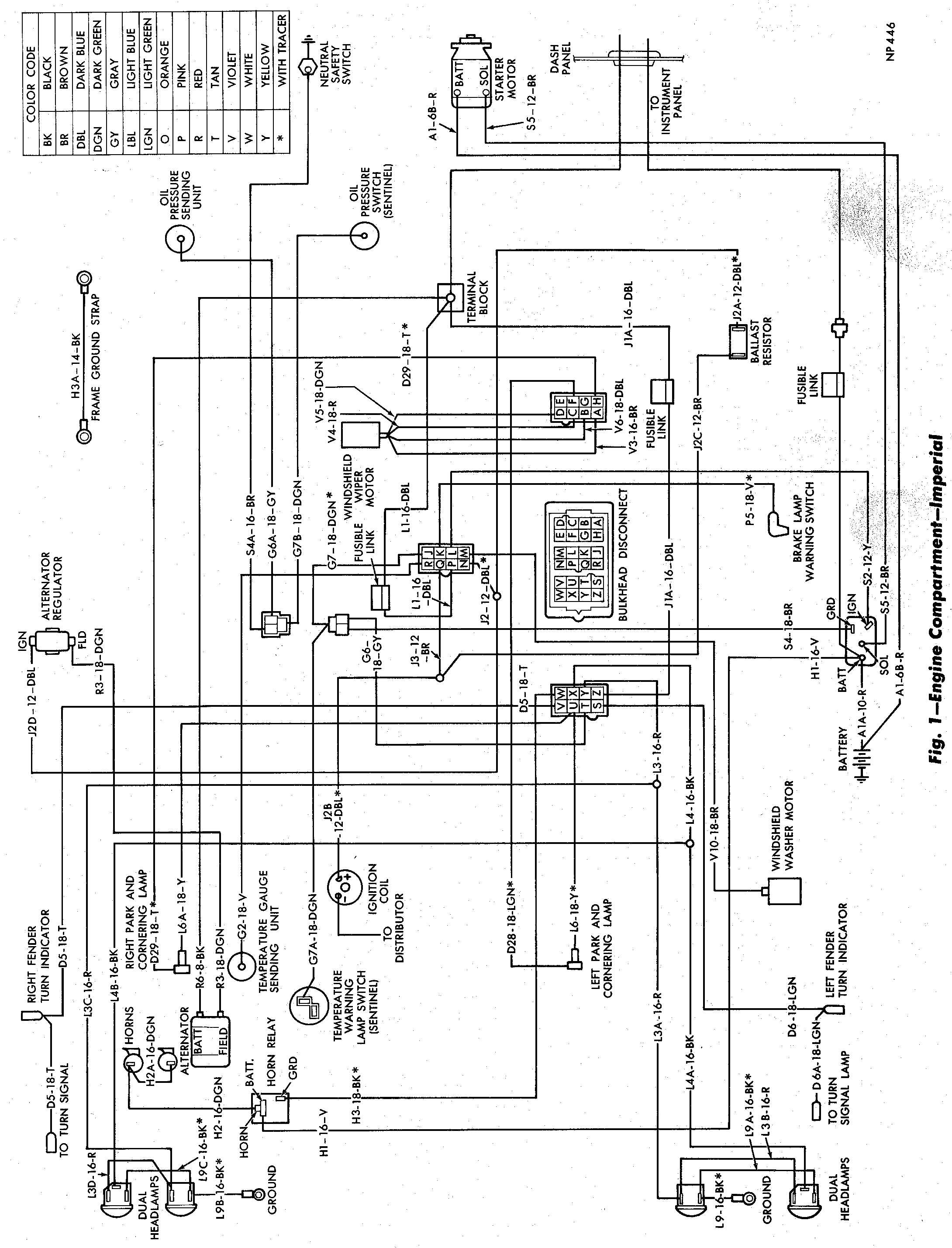

| Body | Engine Compartment | Instrument Panel |
|---|---|---|
|

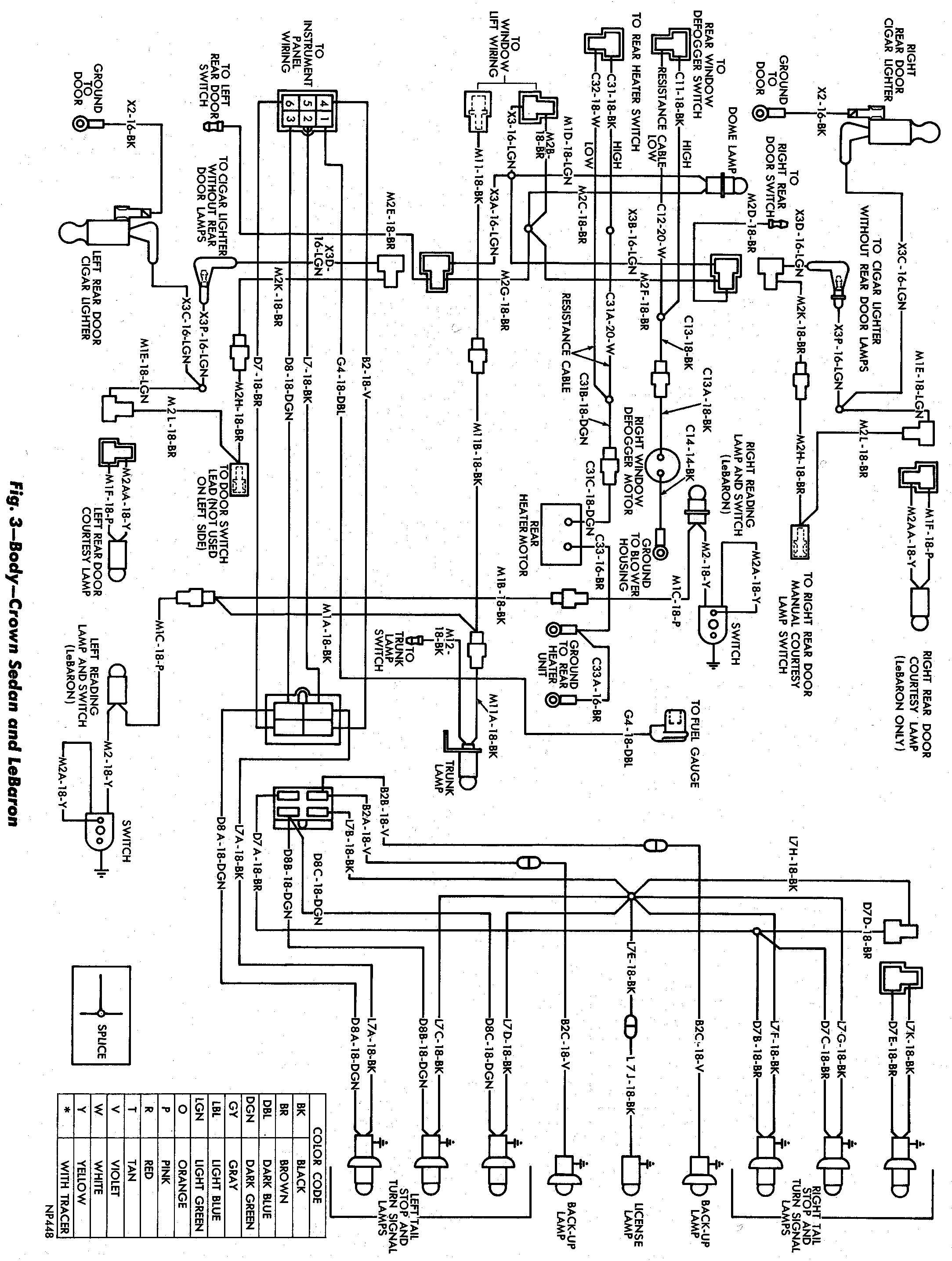

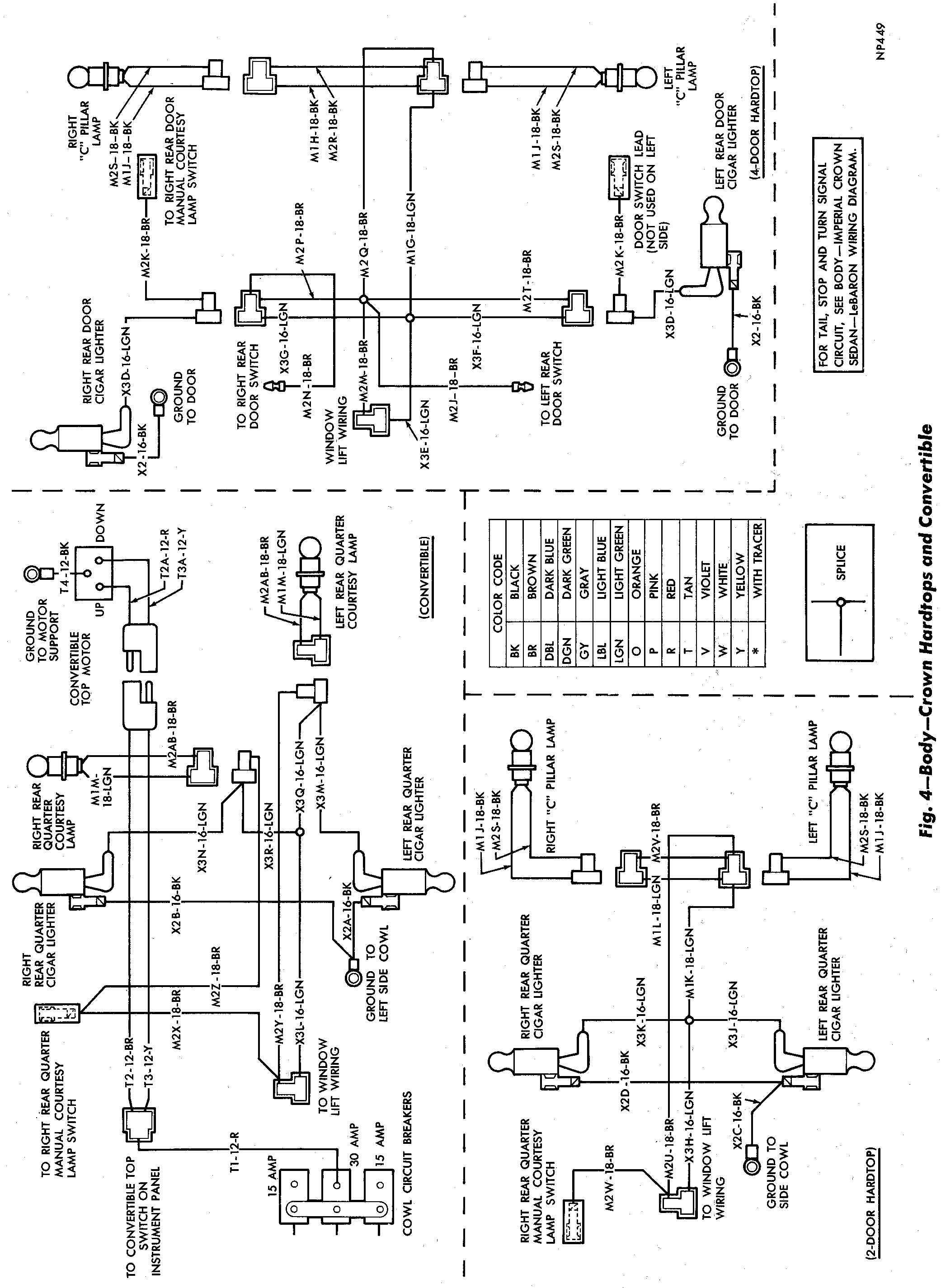

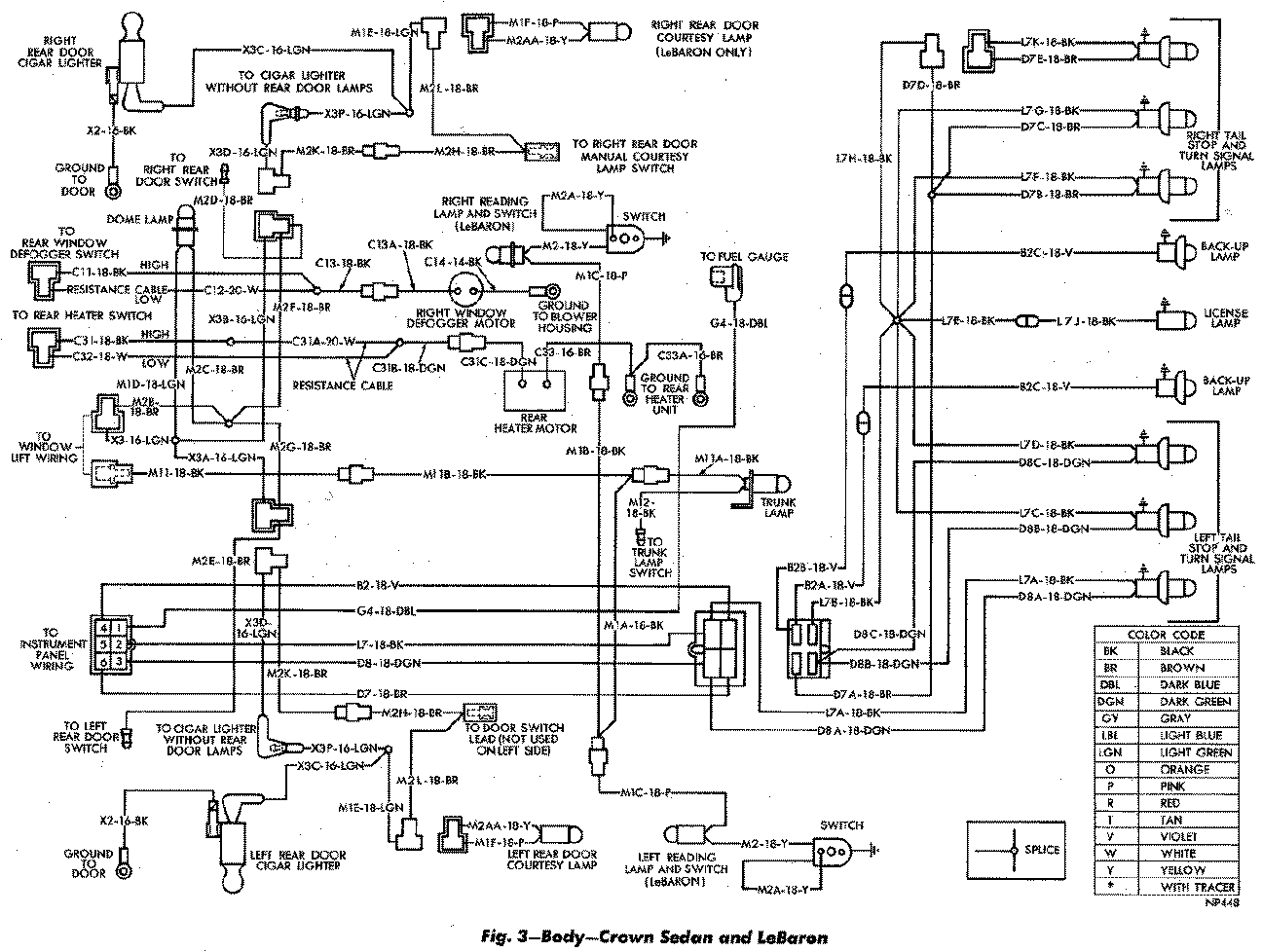

Sedan & LeBaron Low resolution High resolution Hardtop & Convertible Low resolution High resolution |
Low resolution High resolution |

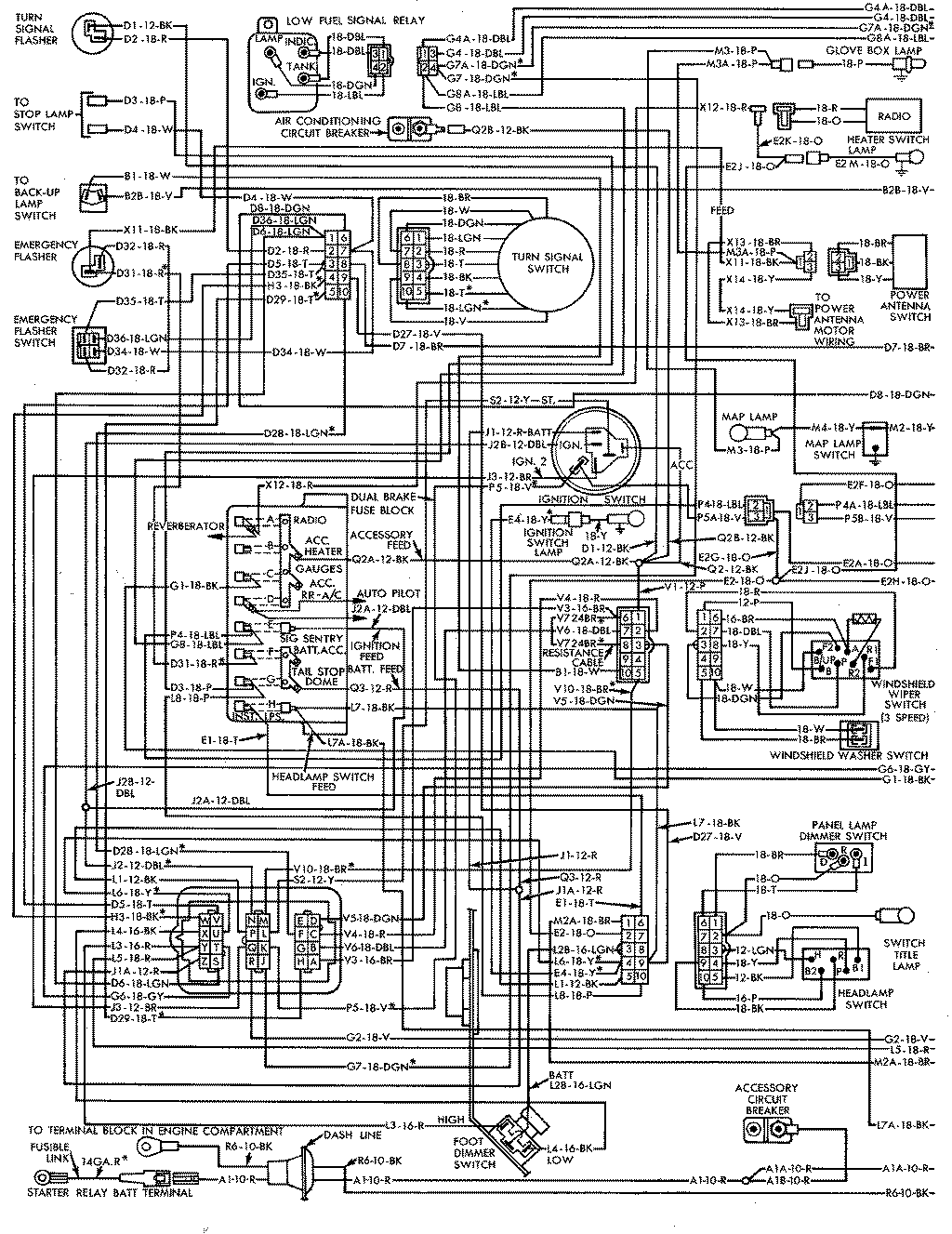

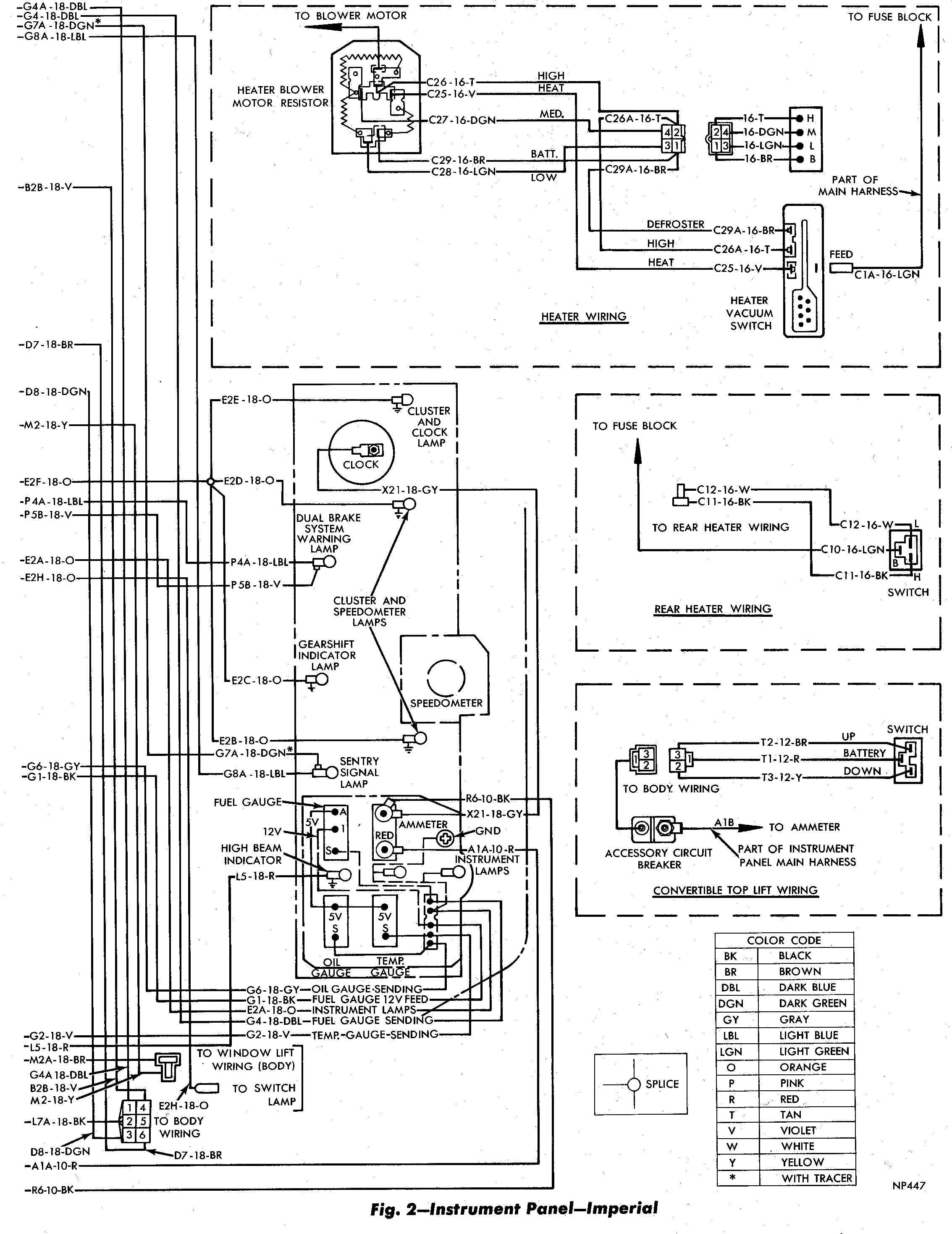

Page 1 Low resolution High resolution Page 2 Low resolution High resolution |
|
