Replacing Your Imperial's Voltage Regulator (1967)

Imperial Home Page -> Repair -> Electrical System -> Charging System -> Voltage Regulator -> 1967 Replacement

(Click on small images to view large ones)

Battery Voltage Regulator Screw on VR

1 Eagle job - Changing your Voltage Regulator - 10 Minutes

Tools Needed - Phillips Screwdriver, Flat Head Screw Driver, 3/8 socket, 1/2 inch wrench, Napa Regulator #VR32SB

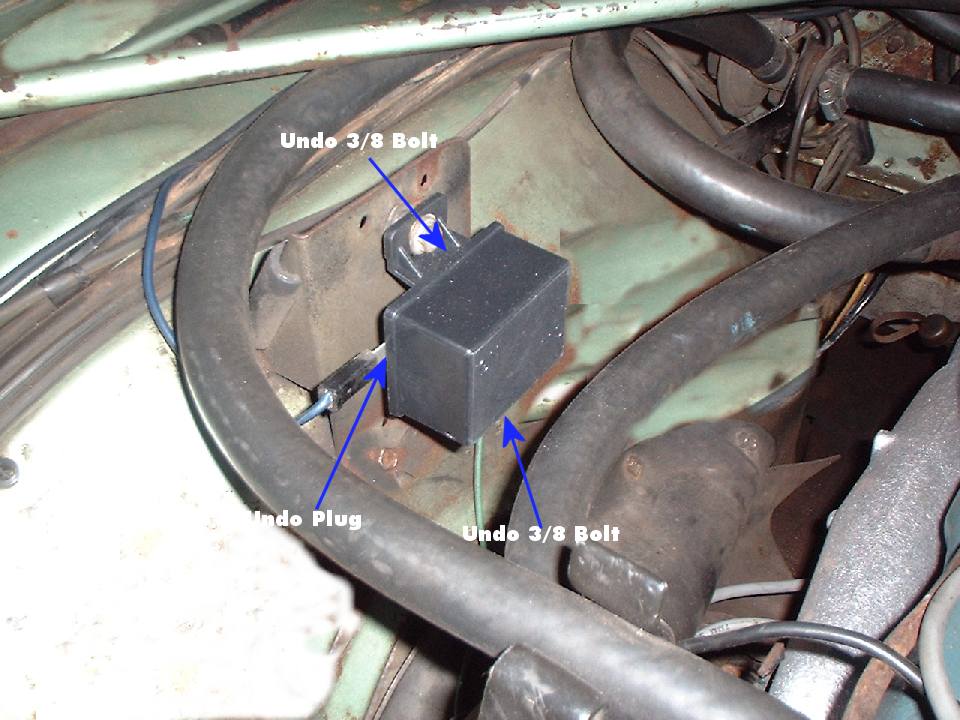

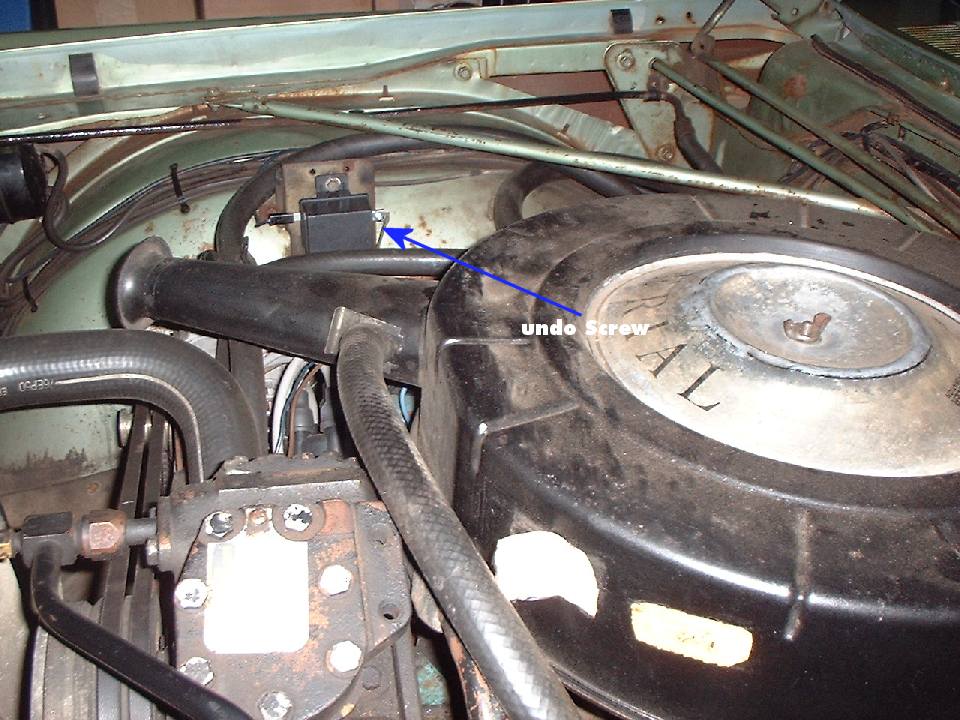

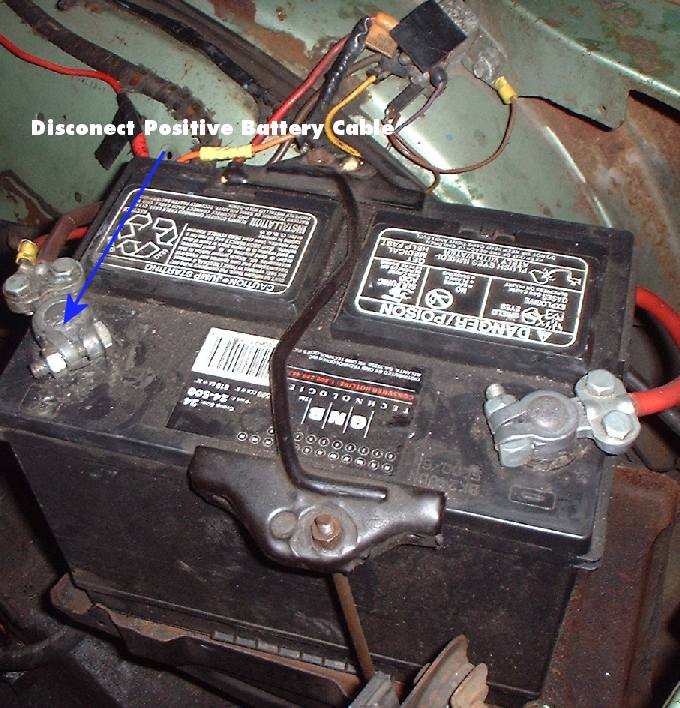

Disconnect Positive Battery cable, I just do this to prevent accidentally zapping myself, Remove Clip on Left - See 2nd Photo, remove screw on connection see photo 3, Undo top and bottom bolts (see Picture 2). Follow procedure in Reverse.
